4.7V to 17V Input, 5A Synchronous Buck Regulators with AOT Control
Description

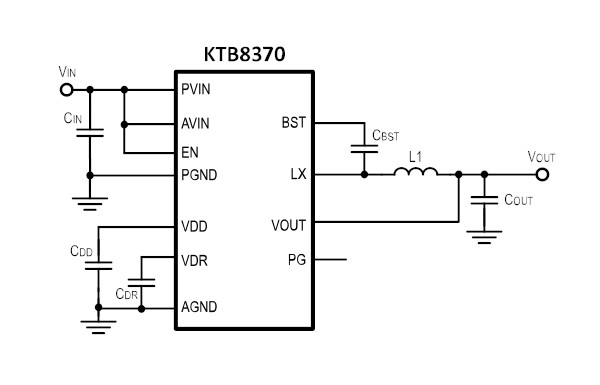

KTB8370 is 5A, 17V synchronous buck regulators with integrated high-side and low-side power FETs. The device operates over a wide input voltage range to support a variety of applications with input voltage from regulated 5V and 12V power rails and multicell batteries.
KTB8370 employs Kinetics’ proprietary advanced adaptive on-time (AOT) control for fast transient response and high output voltage accuracy. This control technique eliminates the external loop compensation network and allows the use of ceramic output capacitors without ripple-generating circuitry. These features enable a very small total solution size and make KTB8370 easy to use.
The device features an internal soft-start function to limit inrush current during start-up. The device has comprehensive built-in protection features including input voltage UVLO, high-side cycle-by-cycle peak current limit, low-side valley current limit, reverse current protection, short-circuit protection, output over-voltage protection, and thermal shutdown.

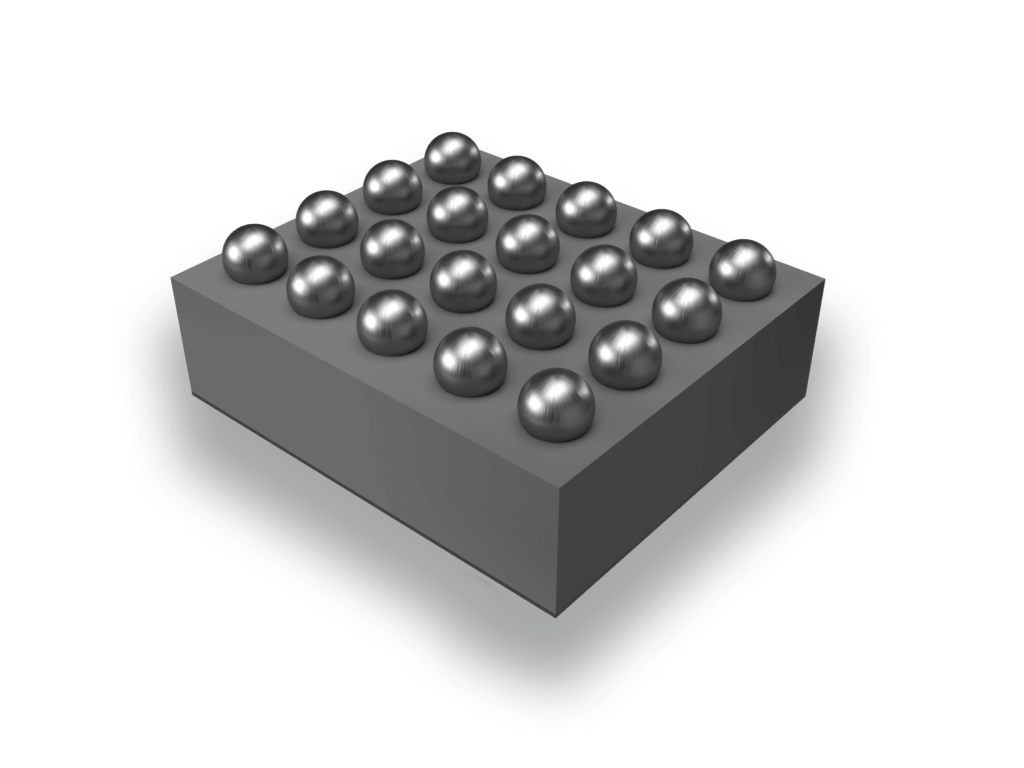

KTB8370 are available in RoHS and Green compliant 20-bump 1.7mm x 2.0mm x 0.6mm wafer-level chipscale WLCSP20 package.


Features
- Wide VIN Range: 4.7V to 17V
- Maximum Continuous Output Current: 5A
- Output Voltage 1 : 5.0V
- Integrated High / Low-Side FETs (65mΩ / 35mΩ)
- Advanced Adaptive On-Time Control
- Fast Transient Response
- Open Drain Power Good Indicator
- ±0.5% Feedback Voltage Reference
- Zero Shutdown Supply Current
- 50μA Non-Switching Operating Quiescent Current
- 80μA No Load Operating Quiescent Current
- High Efficiency in Light Load and Heavy Load.
- Switching Frequency 1 : 500kHz
- Internal Soft-Start
- Automatic CCM/PFM 1
- Ultrasonic Mode to Eliminate Audio Noise
- Built-in Cycle-by-Cycle Current Limit, Short Circuit Protection, Input UVLO, Output Under-Voltage Protection, Output Over-Voltage Protection, and Thermal Shutdown Protection
- Small 20-bump WLCSP (1.7mm x 2.0mm) Package
Applications
- CPU, GPU, AP, DSP, FPGA, VIO, VSYS
- HDD, LPDDR3, LPDDR4 Memory Power
- Tablets, Netbooks, Ultra-Books, Mobile Internet Devices, IoT, and Server.
- DSC, Drones, Gaming Consoles, TV Set Box
Packaging Information
Package | Dimensions | Bumps | Package Code |
WLCSP45-20 | 1.750mm x 2.063mm x 0.620mm | 20 | IB |
Parameters
Vin (min) | Vin (max) | Switching Frequency (MHz) | Max Current (A) |
4.7V | 17.0V | 500kHz | 5.0 |
Technical Documentation
Description | Documents | Type |
---|---|---|
Datasheet | KTB8370-04d | |
Package Outline Drawing | WLCSP45-20 IB POD |
