This product is shortly to be EOL’d and is therefore not recommended for new designs. Existing customers should contact their local sales office for more information.

Kinetic Technologies recommends the KTS1697A for all new designs.

7ARMS VBUS Current-Sink Protection Load Switch

Download Datasheet

Description

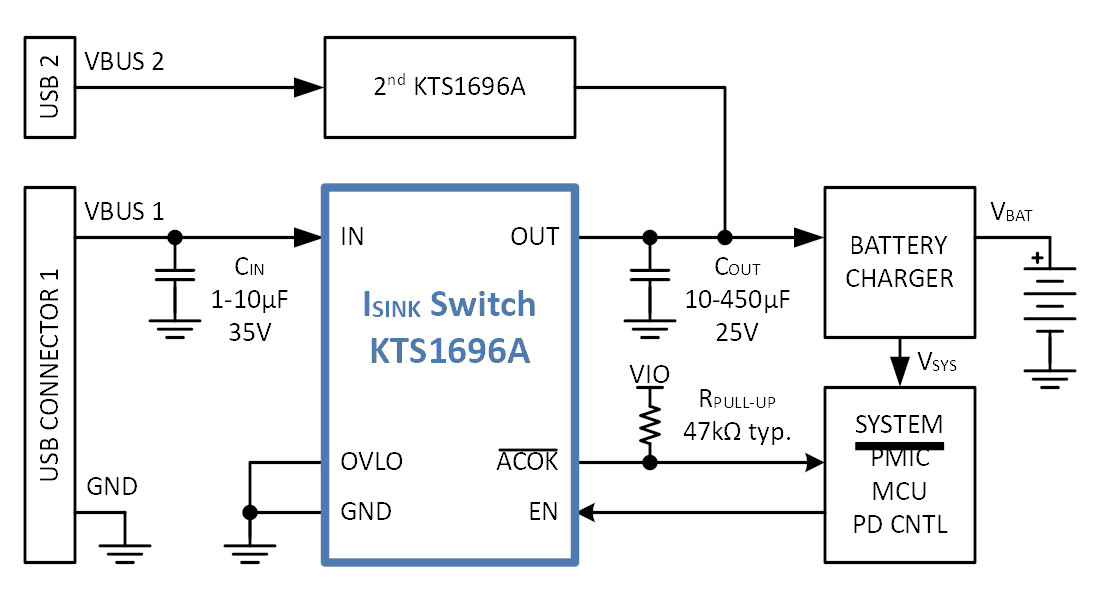

The KTS1696A is a low-resistance, high-current load switch with soft-start, over-voltage protection, “ideal diode” reverse-current protection, short-circuit protection, over-current protection, over-temperature protection, and integrated TVS. It is optimized to protect systems with USB Type-C PD ports and barrel connectors that sink up to 140W at 20V and must withstand up to 29V on VBUS.

Automatic reverse-current protection acts as an “ideal diode” and isolates VBUS when charging or powering the system via another port, regardless of the enable status. Soft-start limits inrush current when turning on with large capacitors at the output. The integrated TVS provides IEC industry standard ESD and ±90V surge ratings.

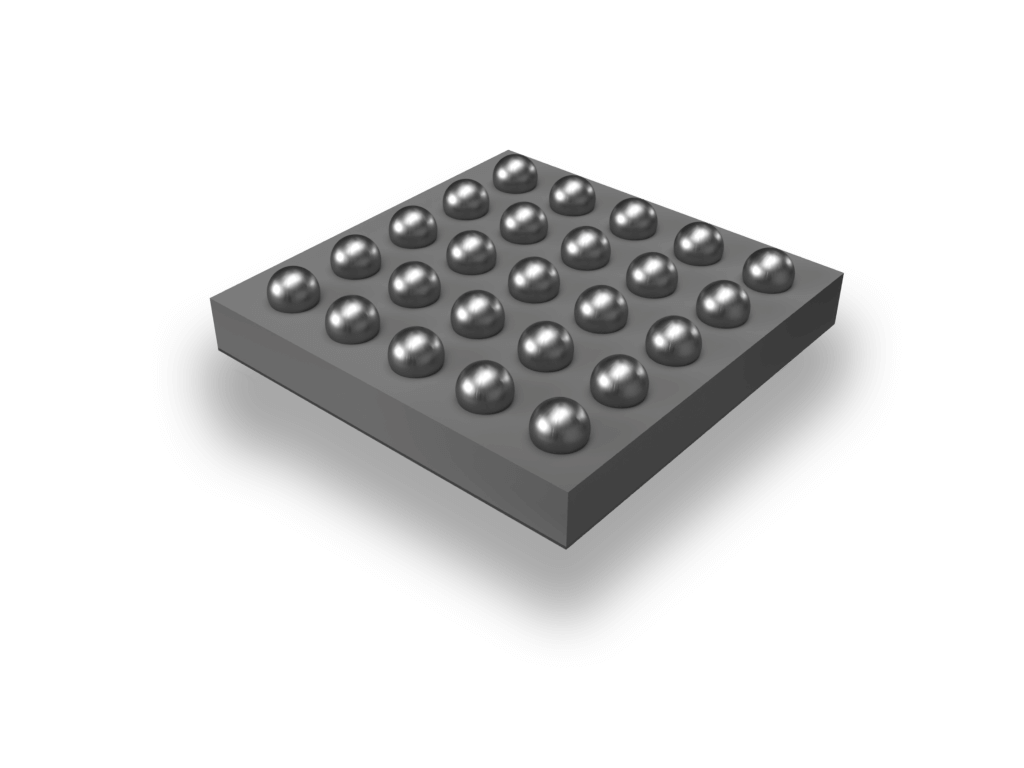

The KTS1696A is packaged in advanced, fully “green” compliant, 2.70 x 2.70mm, 25-bump Wafer-Level ChipScale Package (WLCSP).

Features

  • 3V to 23V Operating Voltage Range
  • 29V Abs. Max. Rating at IN and OUT
  • 7A Continuous Current Rating
    • 15A Pulse Current Rating (duration Pd limited)
  • 11mΩ typ. On-Resistance from IN to OUT
  • Soft-Start (SS) Limits Inrush Current
  • Overvoltage Protection (OVP) at IN
    • 23V Internally Fixed
    • 4V to 23V External Resistor Programmable
  • “Ideal Diode” Reverse Current Protection (RCP)
  • Short-Circuit Protection (SCP) at OUT
  • Over-Current Protection (OCP) at OUT
  • Over-Temperature Protection (OTP)
  • Transient Voltage Suppression (TVS) at IN
    • ±90V Surge Protection (IEC61000-4-5)
    • ±8kV ESD Contact Discharge (IEC61000-4-2)
    • ±15kV ESD Air Gap Discharge (IEC61000-4-2)
  • EN Active-High Enable Logic Input
    • Auto-Retry after All Faults
    • ACOK Open-Drain Output Flag
    • Pb Free 25-bump WLCSP 2.70 x 2.70mm (0.5mm pitch)
    • RoHS and Green Compliant
  • Safety approvals
    • UL 2367, file no. E515099
  • -40°C to 85°C Operating Temperature Range

Applications

  • Notebooks, Netbooks, Ultra-Books, Tablets
  • Mini Desktop PCs, Docking Stations, Monitors

Packaging Information

Package Dimensions Bumps Package Code
WLCSP55-25 2.70mm x 2.70mm x 0.62mm 25 OAB

Parameters

Vin (min) Vin (max) ON Resistance Max Current (A)
2.7V 28V 9mΩ 6A
