Description
The KTS1865 is a low-resistance, high-current load switch optimized to protect USB Standard Power Range (SPR) Type-C ports that sink up to 130W at 20V and/or source up to 100W at 20V. The protection features include soft-start, over-voltage protection, “ideal diode” reverse-current protection with fast recovery, short-circuit protection, over-current protection, programmable current limit protection, over-temperature protection, and integrated TVS for IEC surge and ESD protection. Other features include a POK Safe LDO, !F!L!T! open-drain output flag, fast softstart mode for USB fast role swap, and active discharge for VBUS. The EN1 and EN2 logic inputs enable/disable the switch and set the ISINK vs. ISOURCE operating mode.

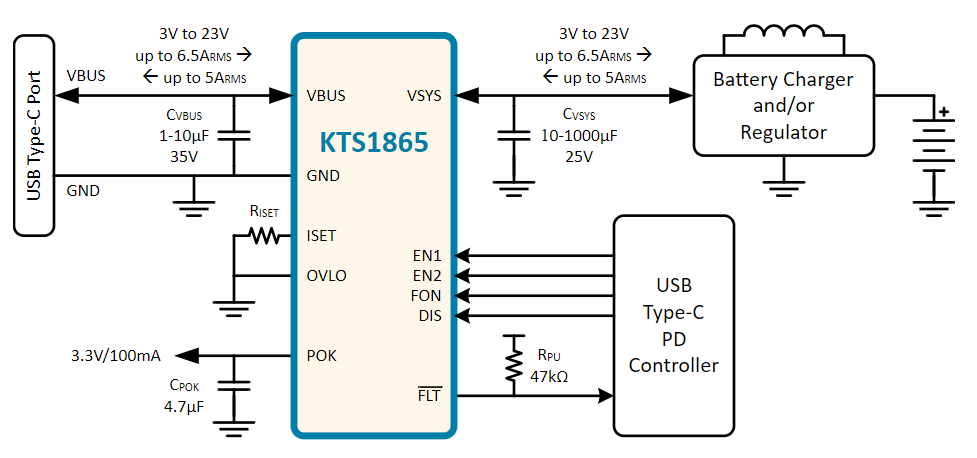

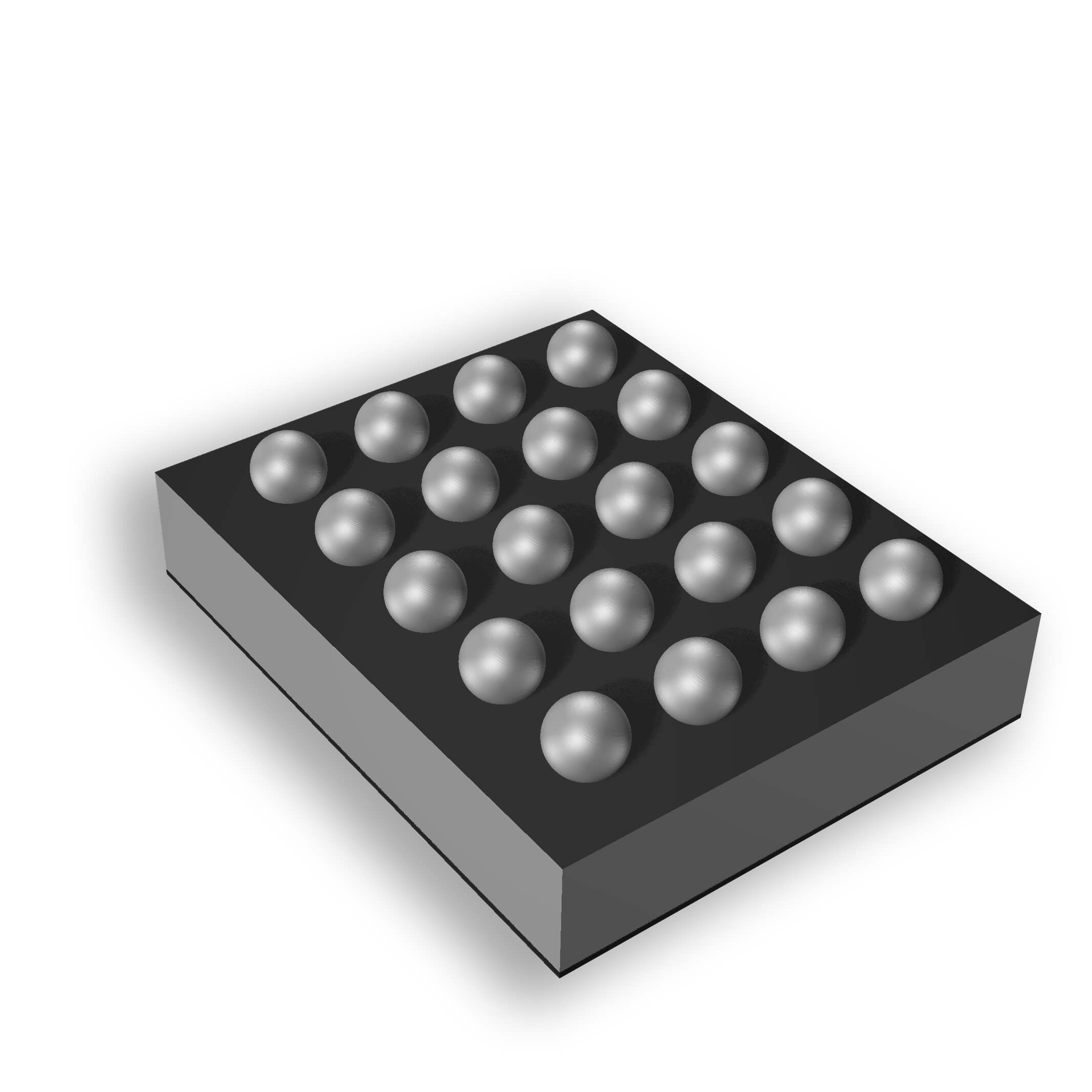

The KTS1865 is packaged in advanced, fully “green” compliant, 2.71 x 2.16mm, 20-bump Wafer-Level Chip-Scale Package (WLCSP).
Features
- Bi-Directional Switch for USB ISINK, ISOURCE, or DRP
- 3V to 23V Operating Voltage Range
- 29VDC Abs. Max. Rating at VBUS & VSYS
- 6.5ARMS Current Rating in ISINK Mode
- 5.0ARMS Current Rating in ISOURCE Mode
- 20mW typ. On-Resistance
- Transient Voltage Suppression (TVS) at VBUS
- ±100V Surge Protection (IEC61000-4-5)
- ±30kV ESD Contact & Air-Gap (IEC61000-4-2)
- Soft-Start (SS) Limits In-Rush Current
- Fast SS for USB Fast Role Swap (FRS)
- Over-Voltage Protection (OVP)
- “Ideal Diode” Reverse Current Protection (RCP)
- Short-Circuit Protection (SCP) at VBUS & VSYS
- Over-Current Protection (OCP) in ISINK Mode
- Current-Limit Protection (CLP) in ISOURCE Mode
- Over-Temperature Protection (OTP)
- POK Safe LDO provides 3.3V/100mA
- FLT Open-Drain Output Flag
- Auto-Retry Hiccup Operation after Faults
- Active Discharge for VBUS
- -40°C to 85°C Operating Temperature Range
- 20-bump WLCSP 2.71 x 2.16mm (0.5mm pitch)
Applications
- Desktop PC, Notebooks, Netbooks, Tablets
- Docking Stations, Monitors, POS Terminals
- Battery/Solar Generators, Conferencing Systems
- Charger-per-Port Systems, Power Banks
| Package |
Dimensions |
Bumps |
Package Code |
| WLCSP54-20 |
2.710mm x 2.710mm x 0.555mm |
20 |
IAA |
Parameters
| Vin (min) |
Vin (max) |
Surge (V) |
RON (mΩ) |
IMAX (A) |
RBP |
RCP |
OCP |
OVP Adj. |
| 3V |
32V |
±100 |
25 |
5.0 |
Yes |
Yes |
Yes |
4V~31V |
Technical Documentation
Purchase
| Part Number |
Marking1 |
EN1/EN2 Options (see Table 1) |
Operating Temperature |
Package |
| KTS1865AEIAA-TA |
QQXXYYZZZZ |
Default Setting |
-40°C to +85°C |
WLCSP-20 |
| KTS1865BEIAA-TA2 |
UCXXYYZZZZ |
Alternative 1 |
-40°C to +85°C |
WLCSP-20 |
| KTS1865CEIAA-TA2 |
UDXXYYZZZZ |
Alternative 2 |
-40°C to +85°C |
WLCSP-20 |
| EN1 |
EN2 |
KTS1865A |
KTS1865B |
KTS1865C |
| 0 |
0 |
Switch Off + POK LDO on |
Switch Off + POK LDO on |
ISINK Mode +POK LDO On |
| 0 |
1 |
ISINK Mode +POK LDO On |
Shutdown |
ISOURCE Mode + POK LDO On |
| 1 |
0 |
ISOURCE Mode + POK LDO On |
ISINK Mode +POK LDO On |
Switch Off + POK LDO on |
| 1 |
1 |
Shutdown |
ISOURCE Mode + POK LDO On |
Shutdown |
1. QQ = Device ID for the KTS1865A, UC = Device ID for the KTS1865B, UD = Device ID for the KTS1865C, XX = Date Code, YY = Assembly Code, and ZZZZ = Serial Number.
2. Future device; contact an authorized Kinetic Technologies representative for availability.
Purchase Options Coming Soon
