EPR 48V 6ARMS VBUS OVP Load Switch with Surge Protection

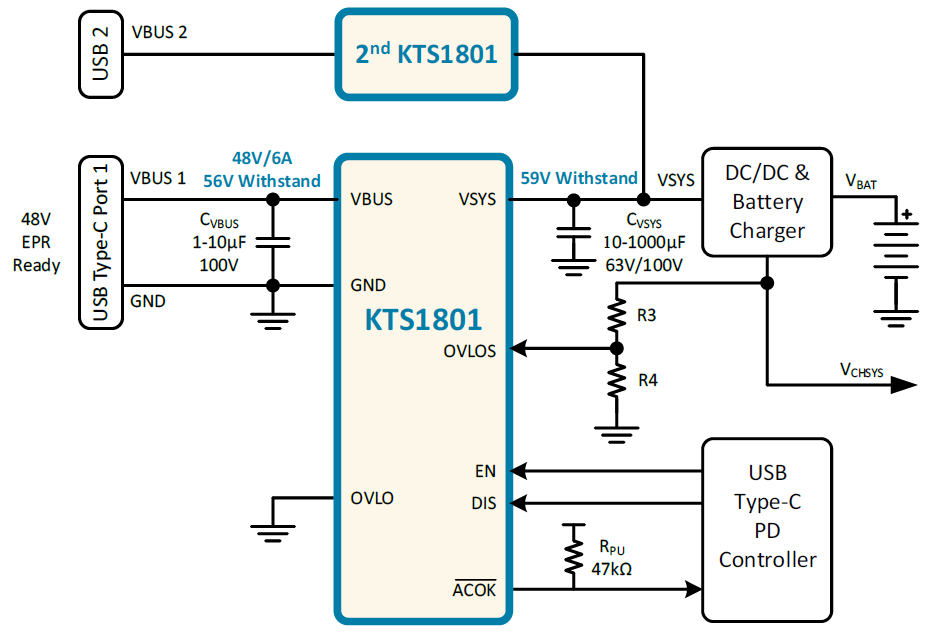

Description

The KTS1801 is a USB VBUS safety management load switch for up to 288W input or output in 48V EPR systems. The operating range is 3V to 55V with VBUS withstand up to 56VDC and VSYS up to 59VDC. Ultra-fast over-voltage protection (OVP) is internally set to 54.2V, but optionally adjusted via external resistors. Low on-resistance minimizes heat and voltage droop.

KTS1801A has automatic reverse-current protection (RCP) feature which acts as a 17mV “ideal diode” with fast recovery. KTS1801B supports bi-directional mode when enabled. Additional safety management includes short-circuit protection (SCP) during and after soft-start, ultra-fast over-current protection (OCP), over-temperature protection (OTP), and an integrated transient voltage suppressor (Active TVS) for IEC industry standard ±30kV ESD and ±130V surge ratings. VBUS active-discharge circuits is also integrated.

The KTS1801 is packaged in advanced, fully “green” compliant, 3.09 x 3.86mm, 42-bump Wafer-Level ChipScale Package (WLCSP).

Features

  • 3V to 55V Operating Voltage Range
  • 56VDC Abs. Max. Rating at VBUS and 59VDC at VSYS
  • 6ARMS Continuous Current Rating
  • 31mΩ typ. On-Resistance from VBUS to VSYS
  • 54V, 300ns Over-Voltage Protection (OVP) at VBUS
    • 4V to 55V External Resistor Programmable
  • Over-Voltage Protection (OVP) latch off at VCHSYS
    • 4V to 55V External Resistor Programmable
  • Transient Voltage Suppression (Active TVS) at VBUS
    • ±130V Surge Protection (IEC61000-4-5, IPP = 34A)
    • ±30kV ESD Contact Discharge (IEC61000-4-2)
    • ±30kV ESD Air-Gap Discharge (IEC61000-4-2)
  • Soft-Start (SS) Limits Inrush Current
  • Short-Circuit Protection (SCP) during & after SS
  • 24A, 200ns Over-Current Protection (OCP)
  • “Ideal Diode” Reverse-Current Protection (RCP, KTS1801A only)
    • VF = 17mV and 15µs Fast Recovery
  • Bi-directional Mode when enabled (KTS1801B only)
  • Over-Temperature Protection (OTP)
  • VBUS Active Discharge Circuit
  • ACOK Output Flag & Hiccup Auto-Retry after Faults
  • -40°C to 85°C Operating Temperature Range
  • 42-bump WLCSP 3.09 x 3.86mm (0.5mm pitch)

Applications

  • Workstation & Gaming Notebooks
  • Mini Desktop PCs, Monitors, Docking Stations
  • Conferencing Systems
  • Tools, E-Bikes, Battery Power Stations, etc.

Packaging Information

Package Dimensions Package Code

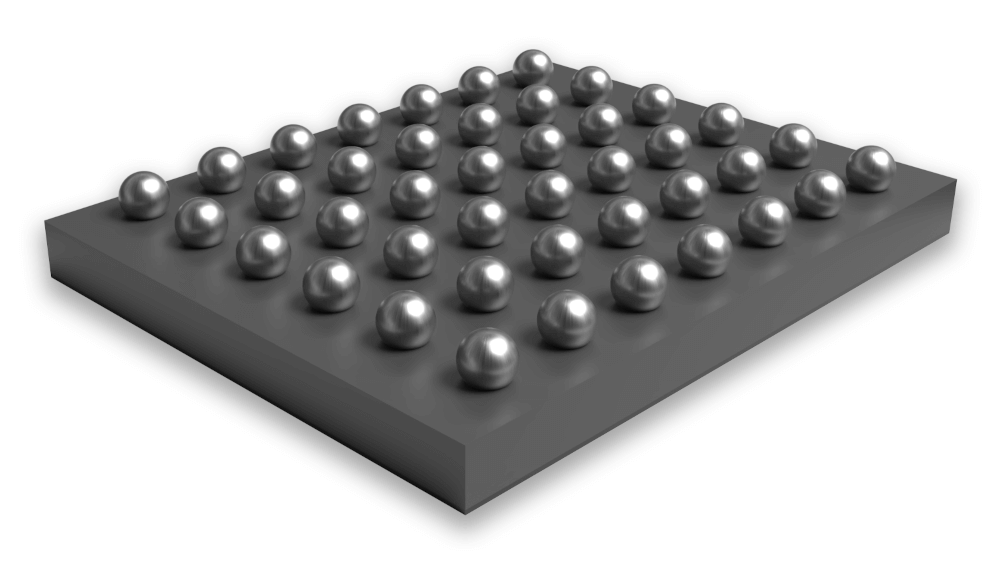

WLCSP76-42 3.09 x 3.86mm x 0.555m MAB
