Description

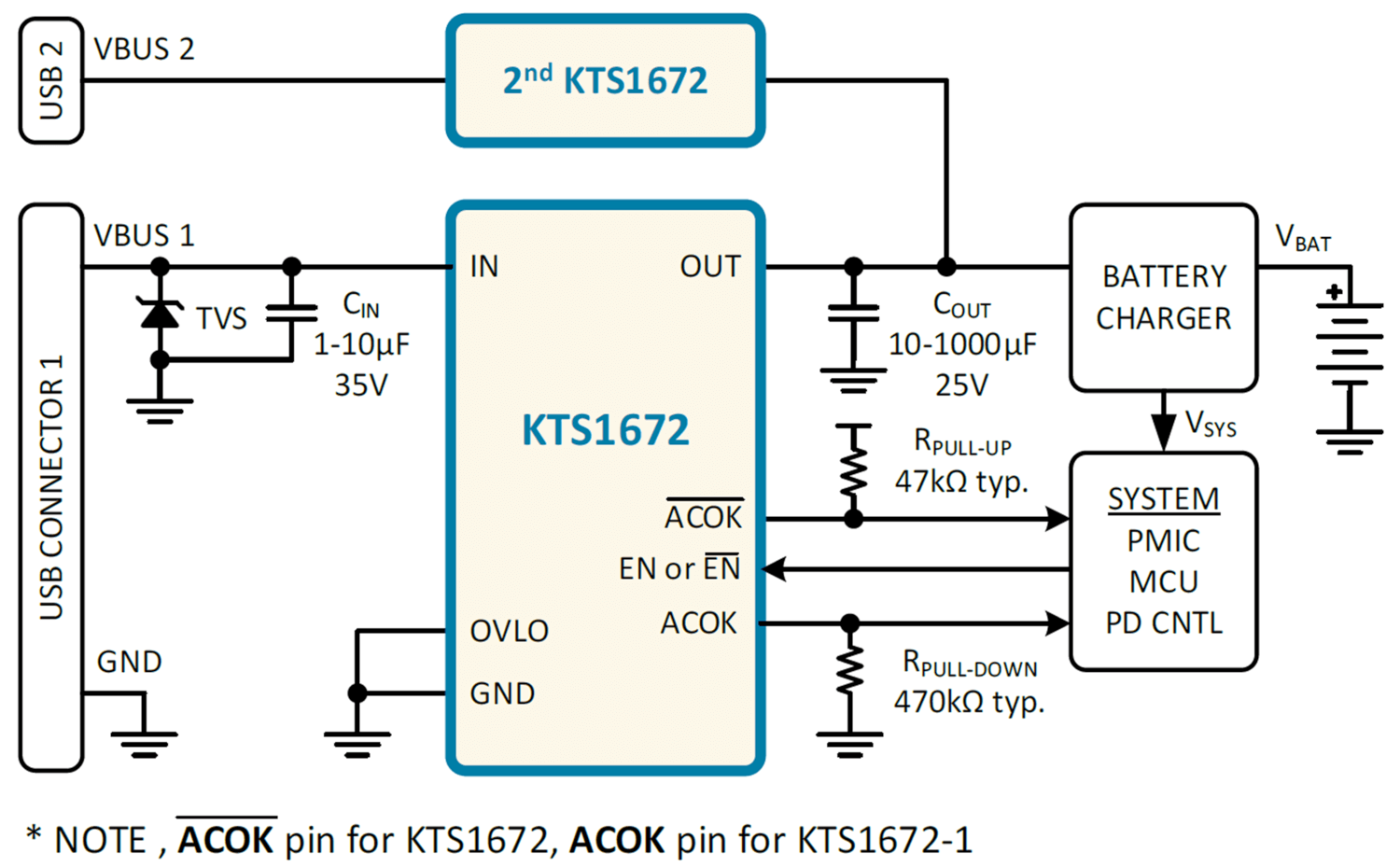

KTS1672 is a low-resistance, high-current load switch with soft-start, over-voltage protection, reverse current blocking, over-current protection, short-circuit protection, over-temperature protection. It is optimized to protect systems with USB Type-C PD ports and barrel connectors that sink up to 100W at 20V and must withstand up to 29V on VBUS.

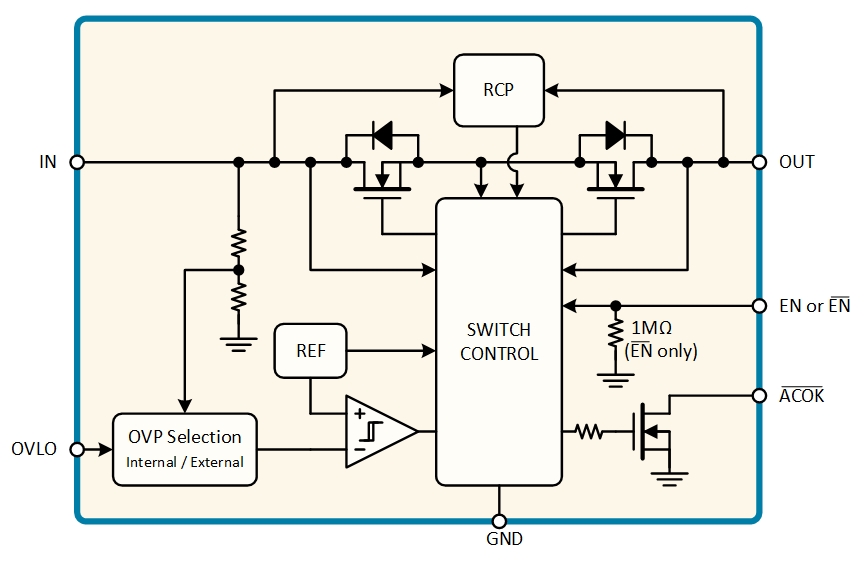

KTS1672 has automatic reverse-current blocking feature which acts as an “ideal diode” and isolates VBUS when charging or powering the system via another port. Soft start limits inrush current when turning on with large capacitors at the output. An ACOK or ACOK flag indicates when power is good.

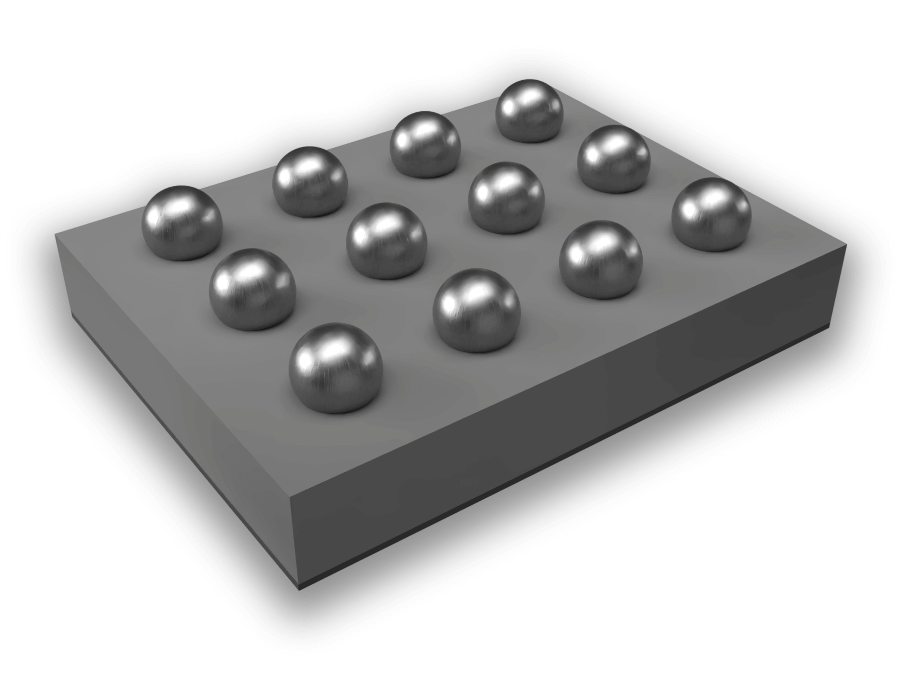

KTS1672 is packaged in advanced, fully “green” compliant, 2.18 x 1.64mm, 12-bump Wafer-Level Chip Scale Package (WLCSP).

Features

  • 3V to 24V Operating Voltage Range
  • 29V Abs. Max. Rating at IN and OUT
  • 5A Continuous Current Rating
    • 12A Pulse Current Rating (duration Pd limited)
  • 25mΩ typ. On-Resistance from IN to OUT
  • Soft-Start (SS) Limits Inrush Current
  • Over-Voltage Protection (OVP) at IN
    • 24V Internally Fixed
    • 4V to 24V External Resistor Programmable
  • “Ideal Diode” Reverse Current Protection
  • 20mV Forward Voltage and 15µs Fast Recovery
  • Over-Current Protection (OCP) at OUT
  • Short-Circuit Protection (SCP) at OUT
  • Over-Temperature Protection (OTP)
  • Auto-Retry after All Faults
  • EN or EN Enable Logic Input Versions
  • ACOK (KTS1672) or ACOK (KTS1672-1) Open-Drain Power Good Flag
  • -40°C to 85°C Operating Temperature Range
  • 12-bump WLCSP 2.18 x 1.64mm (0.5mm pitch)

Applications

  • Desktop, Notebooks, Netbooks, Ultra-Books, Tablets
  • Docking Stations, Monitors, Accessories

Packaging Information

Package Dimensions Package Code
WLCSP43-12 2.18mm x 1.64mm x 0.555m GAE

Technical Documentation

Description Documents Type
DatasheetKTS1672-04dPDF
Package Outline DrawingWLCSP43-12 GAE PODPDF
