Description

The KTE7001 is a single chip, 13.5W wireless power receiver that conforms to WPC/Qi V-1.3 Extended Power Profile (EPP) standard specifications for solutions requiring 9VDC output voltage. A wireless power receiver provides regulated DC output power derived from AC power that is magnetically coupled into a connected wireless power receiver coil.

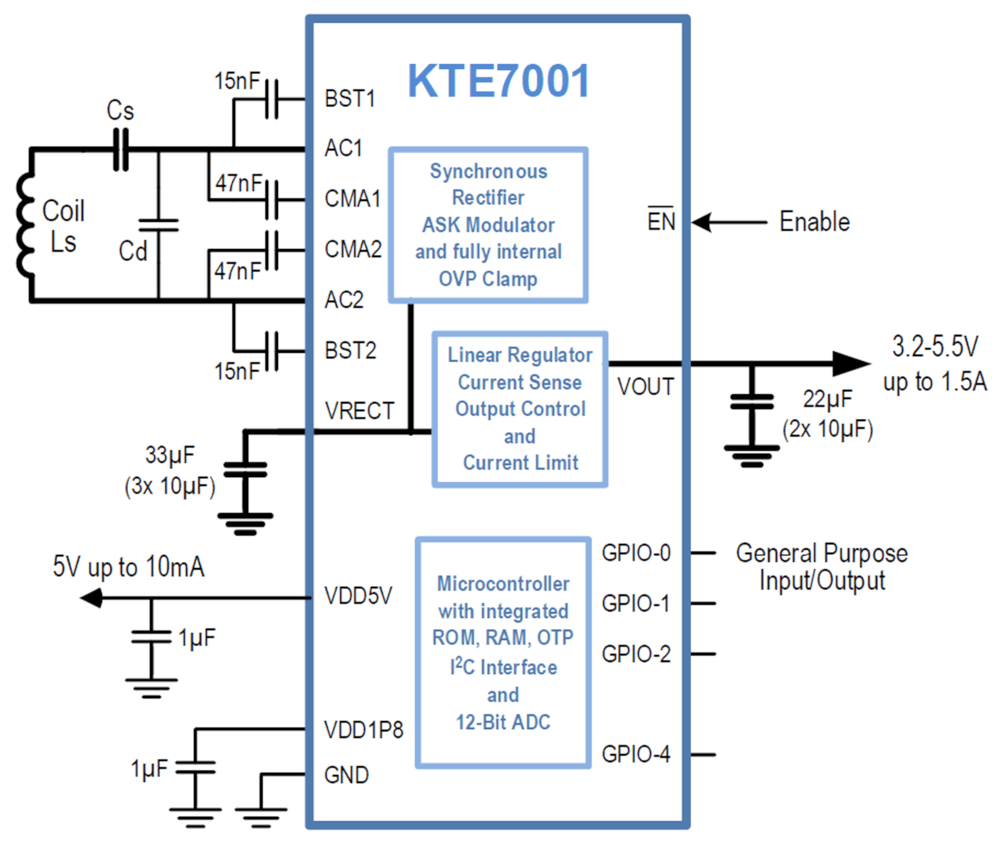

The KTE7001 integrates a full synchronous rectifier and LDO to efficiently convert the wireless AC power into 9VDC output at up to 1.5A current. The embedded microcontroller with firmware and OTP/ROM memory provides system monitoring, protection, and communications back to the power transmitter.

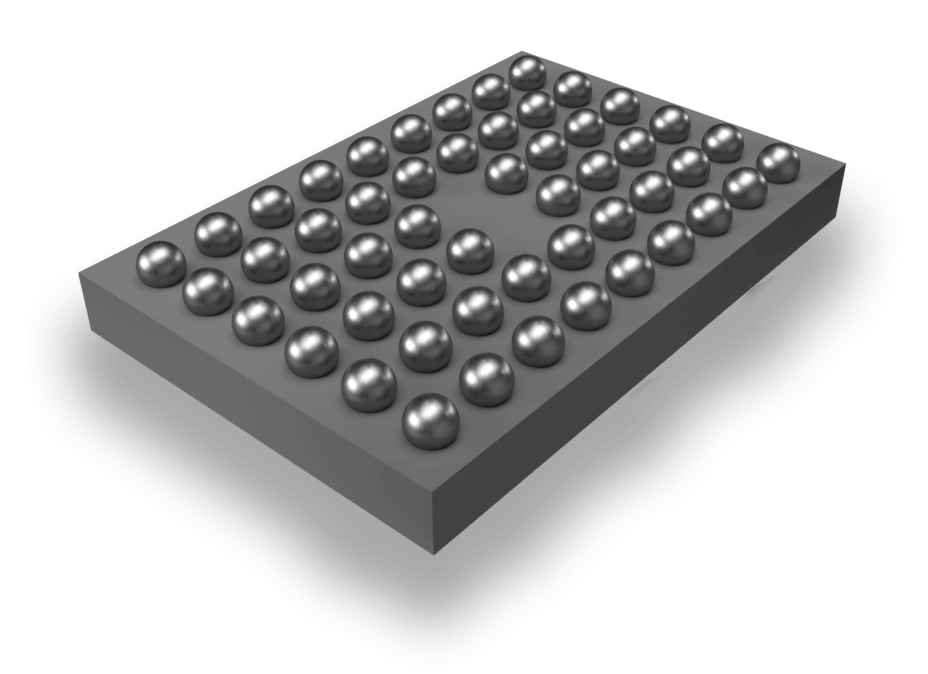

The KTE7001 is packaged in an advanced, fully “green” compliant, 2.66mm x 3.90mm, 52-bump Wafer-Level Chip-Scale Package (6×9 WLCSP).

Features

  • Single Chip Solution for 13.5W wireless power receiver
  • WPC/Qi V-1.3 EPP Compliant for 9VDC at 1.5A
  • 95% Peak Efficiency LDO mode from Coil to 9VOUT
  • Full Synchronous Rectification with Low-RDSON
  • LDO Mode or Pass-Through Mode configurable
    • 9Voutput at up to 1.5A peak output current
    • Short-circuit and current limit protection
  • Embedded Microcontroller and OTP/ROM Memory
  • Configurable Foreign Object Detection (FOD)
  • Standard Firmware with optional external resistor configuration of FOD operating parameters
  • Device Enable control pin for extremely low power consumption while in disabled mode
  • Proprietary, robust internal Over-Voltage Protection
    • Without any external “Sink” resistor or other devices
  • Optional external NTC Over-Temperature Protection
  • -40°C to 85°C operating temperature range
  • 52-bump WLCSP 2.66 x 3.90mm (0.4mm pitch)

Applications

  • Mobile Internet Devices, IoT, Accessories
  • Battery Powered Medical, Industrial, Consumer
  • Wireless Headsets, Headphones, Earbuds

Packaging Information

Package Dimensions Package Code
WLCSP69-52 2.66mm x 3.90mm x 0.62mm NAA

Parameters

Function Input Voltage Range (V) Input Integrated Voltage Clamp (V) Output Voltage Range (V) Output Power (W) Wireless Power Standard
Power Receiver — 25 3.2-5.5 15 WPC/Qi v1.2.4 and v1.3

Technical Documentation

Description Documents Type
DatasheetKTE7001-04fPDF
Package Outline DrawingWLCSP69-52 NAA PODPDF
