Description

The KTE7000 is a single-chip 5W wireless power receiver that conforms to WPC/Qi V-1.3 standards’ Baseline Power Profile (BPP) specifications. A wireless power receiver provides a regulated DC output power derived from AC power that is magnetically coupled into a connected wireless power receiver coil.

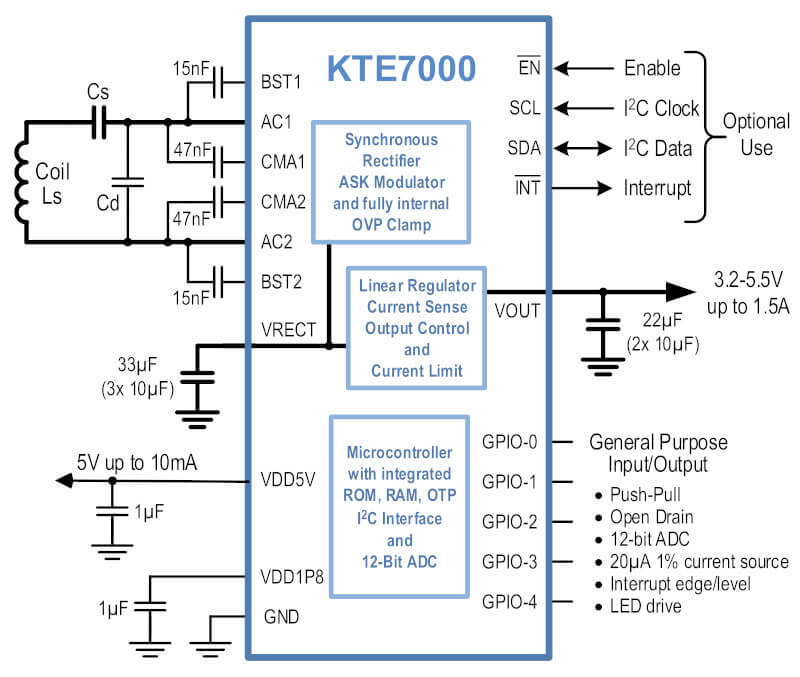

The KTE7000 integrates a full-synchronous rectifier and a low dropout voltage regulator (LDO) to efficiently convert the wireless AC power into 5V regulated DC output with up to 1.5A output current. An embedded MCU with OTP/ROM provides Qi-1.3 communication with the power transmitter, power management, and multi-protections.

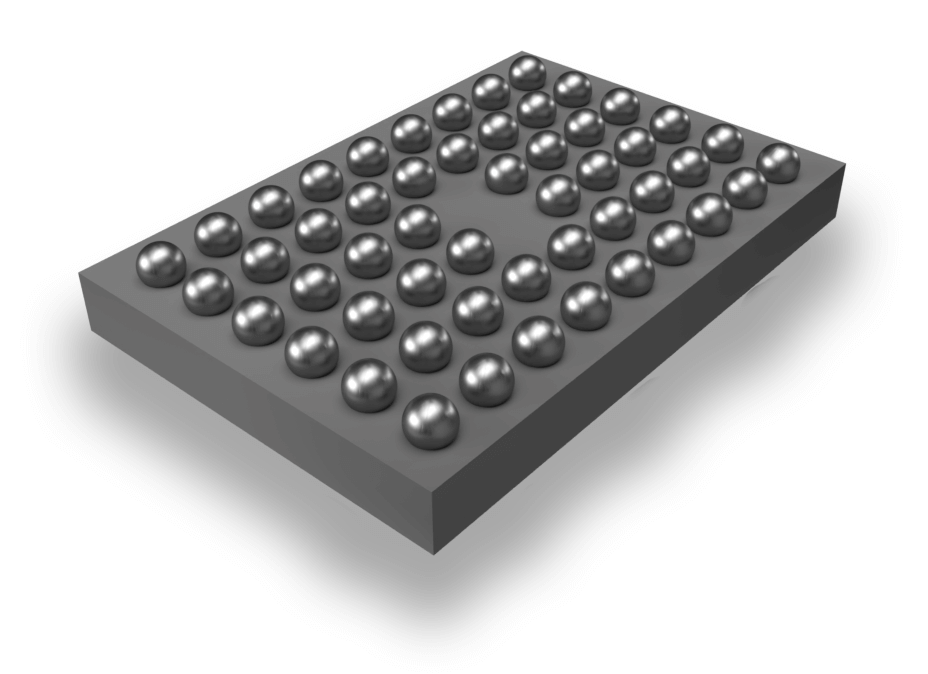

The KTE7000 is packaged in an advanced, fully “green” compliant, 2.66mm x 3.90mm, 52-bump Wafer-Level Chip-Scale Package (6×9 WLCSP).

Features

  • Single-Chip Solution for 5 Watt Wireless Power
  • WPC/Qi v1.2.4 BPP compliant
  • 97% Peak Efficiency from Coil to 5VOUT
  • Full Synchronous Rectification with Low-RDSON
  • LDO Mode or PassThru Mode
    • Vout = 3.2V – 5.5V
    • Up to 1.5A peak output current
    • 2.25A short-circuit protection
  • Embedded Microcontroller and OTP Memory
  • Standard Firmware uses Resistor-Configuration
    • Custom firmware development available
  • Optional I2C Monitoring, Interrupts, and Enable
  • Proprietary Robust Over-Voltage Protection
    • Without external ISINK resistor or capacitor
  • Optional NTC Over-Temperature Protection
  • Configurable Foreign Object Detection (FOD)
  • -40°C to 85°C Operating Temperature Range
  • 52-bump WLCSP 2.66 x 3.90mm (0.4mm pitch)

Applications

  • Mobile Internet Devices, IoT, Accessories
  • Battery Powered Medical, Industrial, Consumer
  • Wireless Headsets, Headphones, Earbuds

Packaging Information

Package Dimensions Bumps Package Code
WLCSP69-52 2.66mm x 3.90mm x 0.62mm 52 NAA

Parameters

Function Input Voltage Range (V) Input Integrated Voltage Clamp (V) Output Voltage Range (V) Output Power (W) Wireless Power Standard
Power Receiver — 25 3.2-5.5 5 WPC/Qi v1.3 BPP

Technical Documentation

Description Documents Type
DatasheetKTE7000-04ePDF
Package Outline DrawingWLCSP69-52 NAA PODPDF

Purchase

Part Number Marking Operating Temperature Package
KTE7000ENAA-DB-TB PKFRXXYYZZZZ -40°C to +85°C WLCSP69-52
