2MHz, 2-Ch 1.5A+1.0A Flash LED Driver

Features

  • High efficiency synchronous boost converter with 2MHz/4MHz switching frequency option
  • I2C interface programming and hardware STROBE/TORCH control
  • Two-channel independent current sources
    • LED1: Up to 1.5A (7 bits)
    • LED2: Up to 1.0A (6 bits)
    • Flash/Torch/IR modes
    • Independent LED on/off and current settings
    • Programmable ramp shape and time control
    • Three input low voltage protection modes
    • Flash time-out protection up to 1.44s
    • LED cathode ground connection for improved thermal dissipation
  • LED open/short protection
  • I2C fault read back (I2C address = 0x63)

Applications

  • Smartphones and Tablets Camera Flash
  • Digital Cameras

Key Electrical Specifications

Vin(Min) Vin(Max) Max. Current per Channel Channels Control Type Package

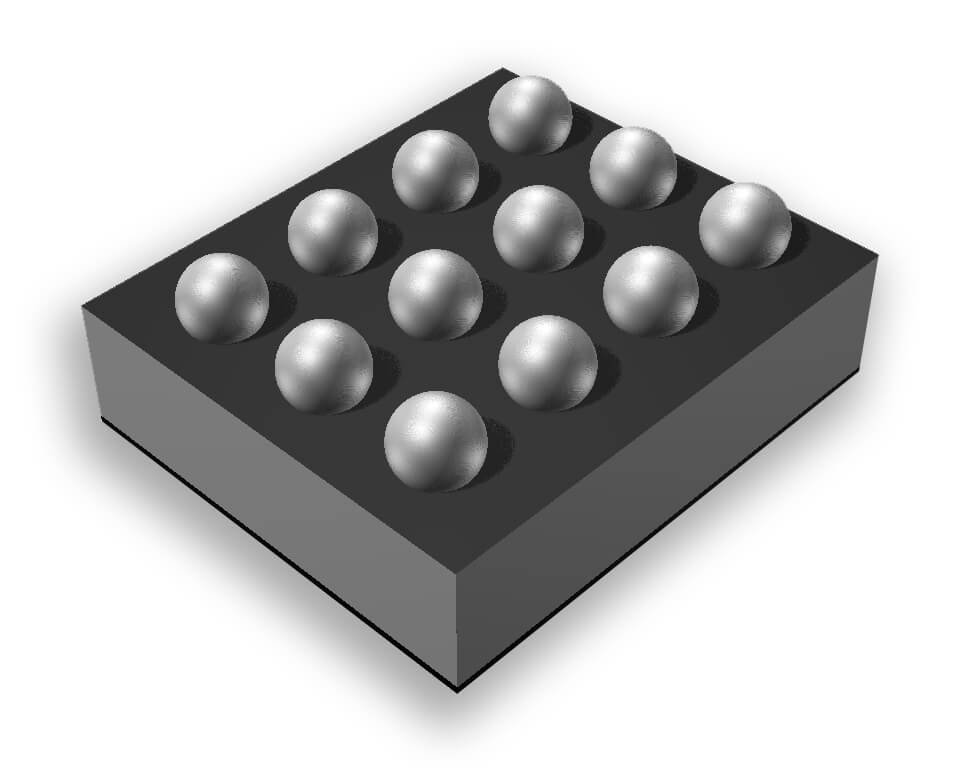

2.7V 5.5V 1500/1000mA 2 I2C  WLCSP-12

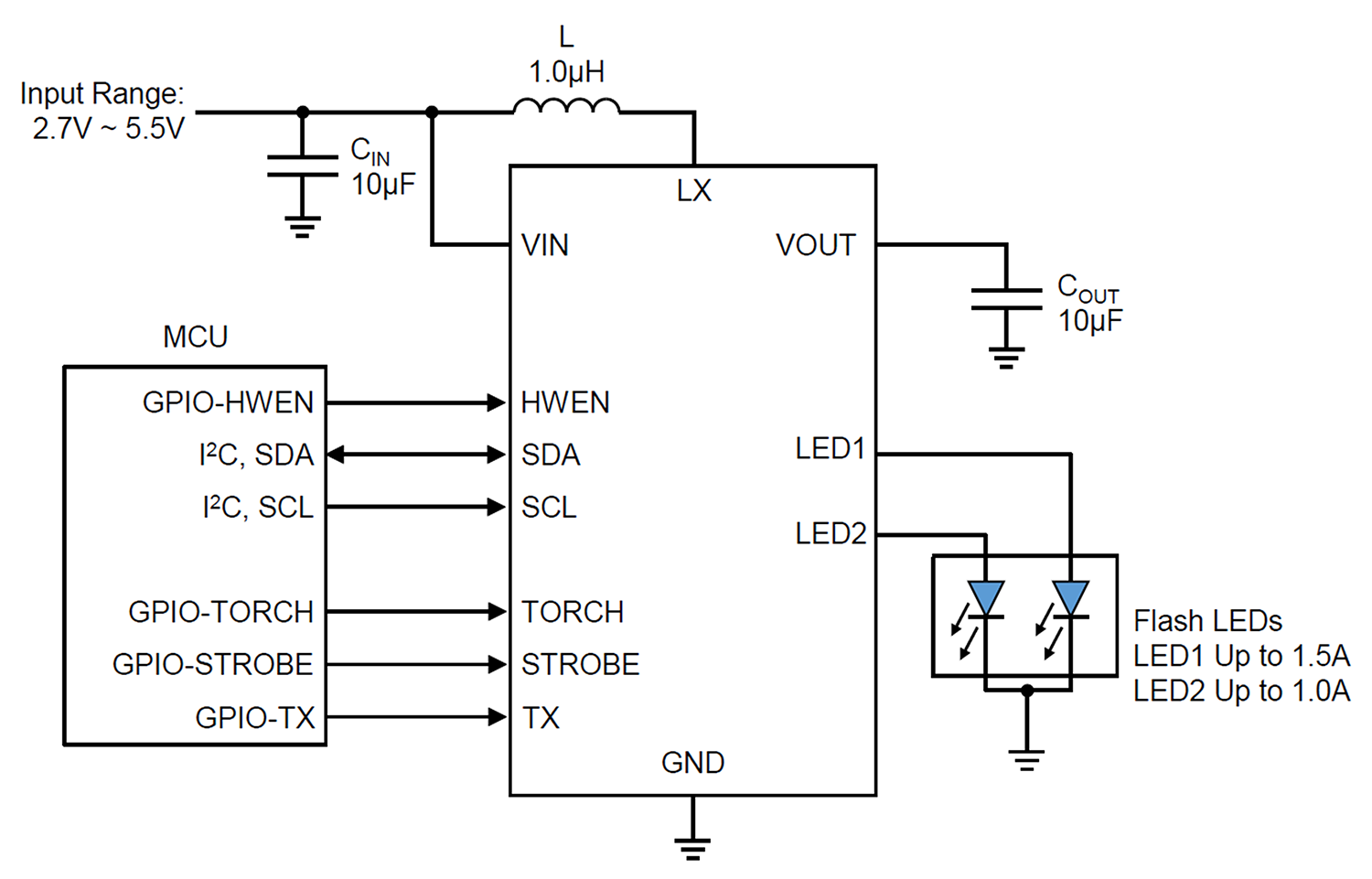

Typical Application Diagram
