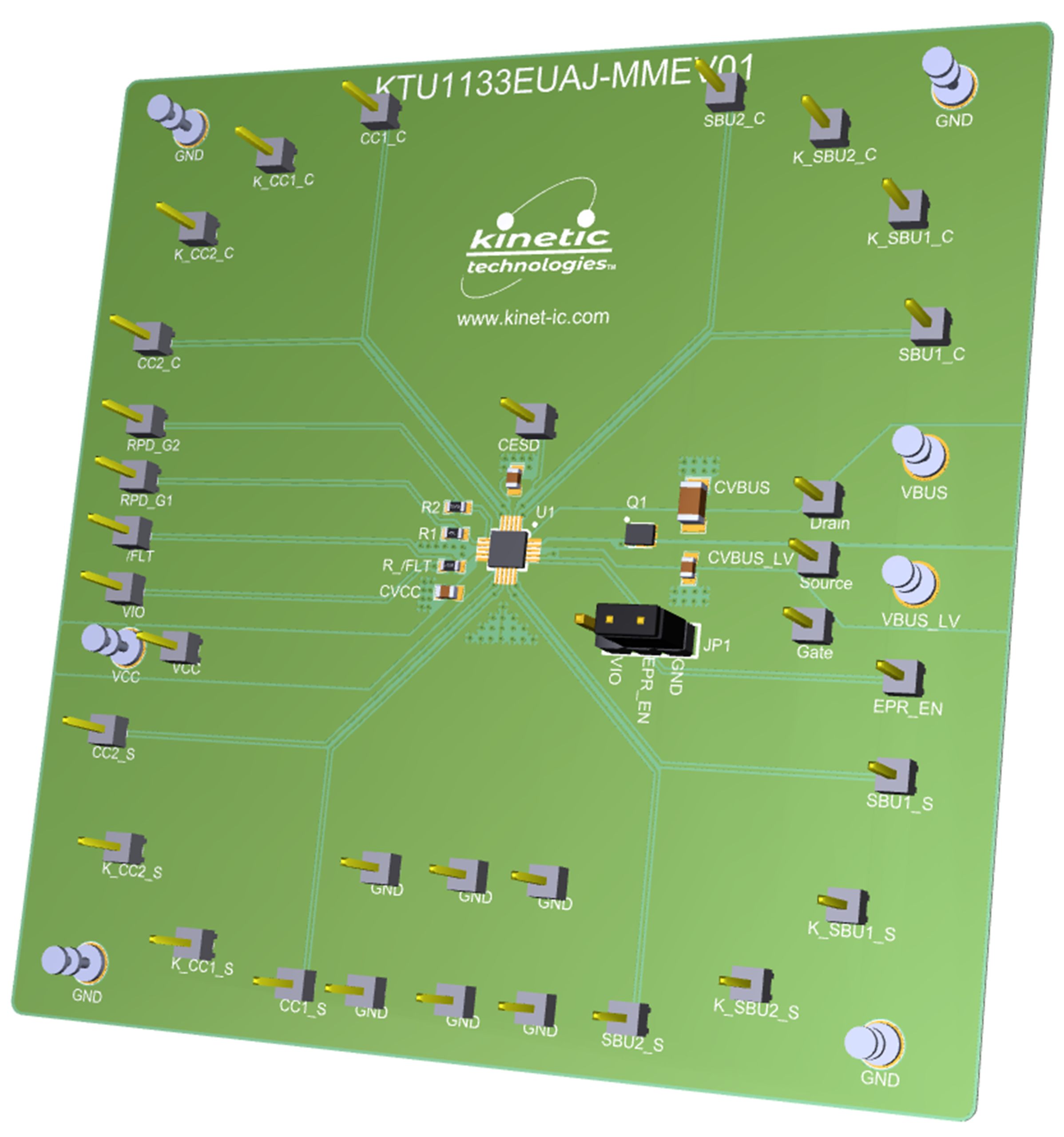

KTU1133 EVAL Kit - USB 48V EPR Port Protector for CC & SBU
The KTU1133 provides safety management for USB PD3.1 48V EPR ports with comprehensive protection of the CC and SBU data lines. All four data lines include 63VDC withstand for short-to-VBUS fault events in the connector and integrated transient voltage suppression (TVS) for IEC surge protection and IEC level-4 ESD protection. Fast over-voltage protection (OVP) isolates downstream system circuits during fault events.
The integrated VBUS level shift circuit and external blocking NFET gate driver allow SPR-rated PD controllers to safely operate in EPR systems. The KTU1133 is packaged in RoHS and Green compliant 20-pin 3mm x 3mm WQFN package
