KTS1897 EVAL Kit - 6.5ARMS VBUS OVP Load Switch for 28V EPR Systems (includes KTS1289)

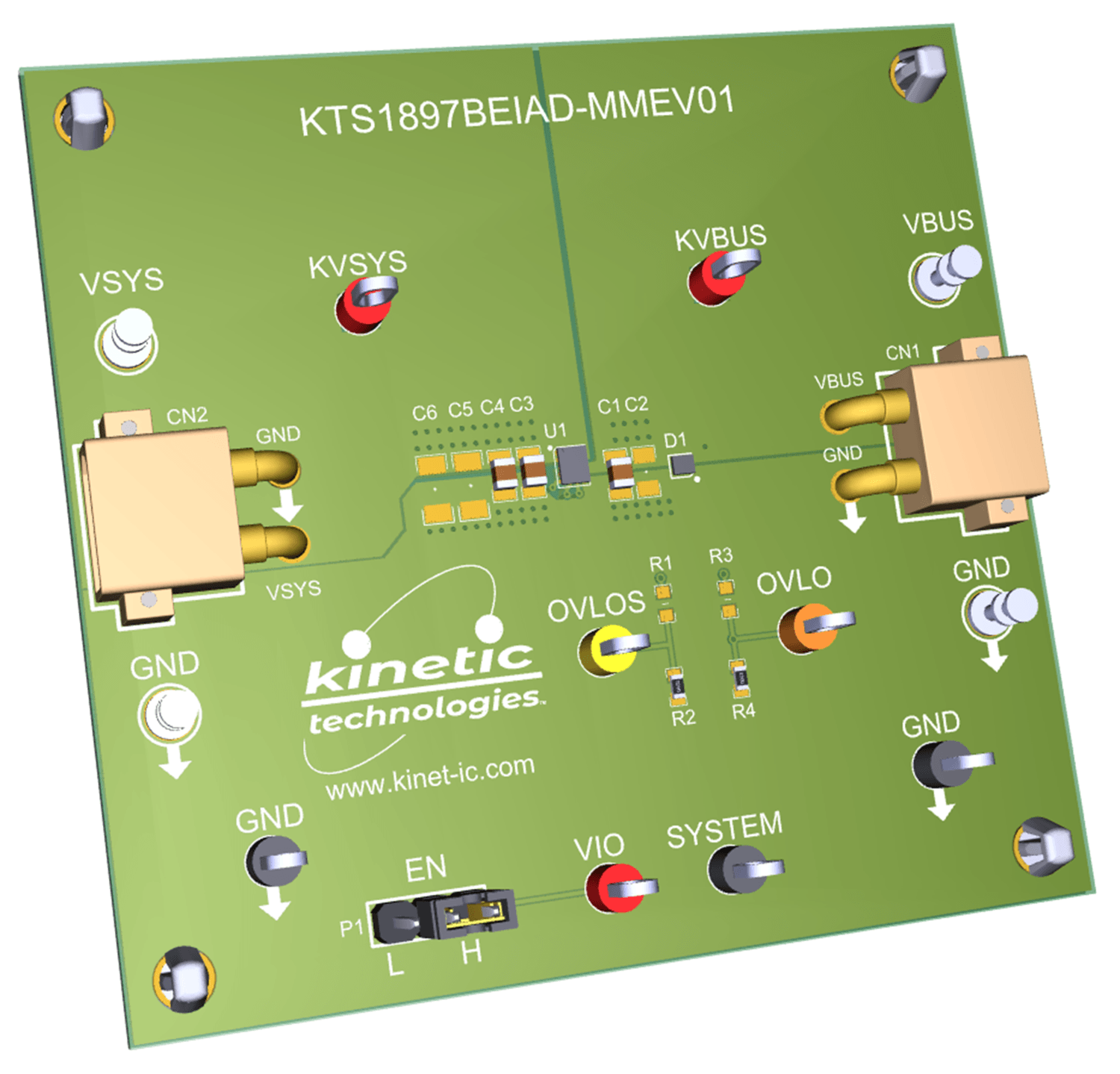

The KTS1897+KTS1289 Evaluation (EVAL) Kit is used to demonstrate and evaluate the KTS1897 and KTS1289 functionality, performance, and PCB layout. The kit includes a fully assembled and tested PCB with the KTS1897 and KTS1289 IC installed. The KTS1897 device is a USB VBUS safety management load switch for up to 182W current-sink input for 28V EPR systems. The input operating range is 3V to 33V with VBUS withstand up to 39VDC and VSYS up to 35VDC. The KTS1289 is a flat-clamp mini TVS providing high voltage surge and ESD protection. The KTS1897+KTS1289 evaluation board has power and signal I/O connections with an array of test points for signal observation
