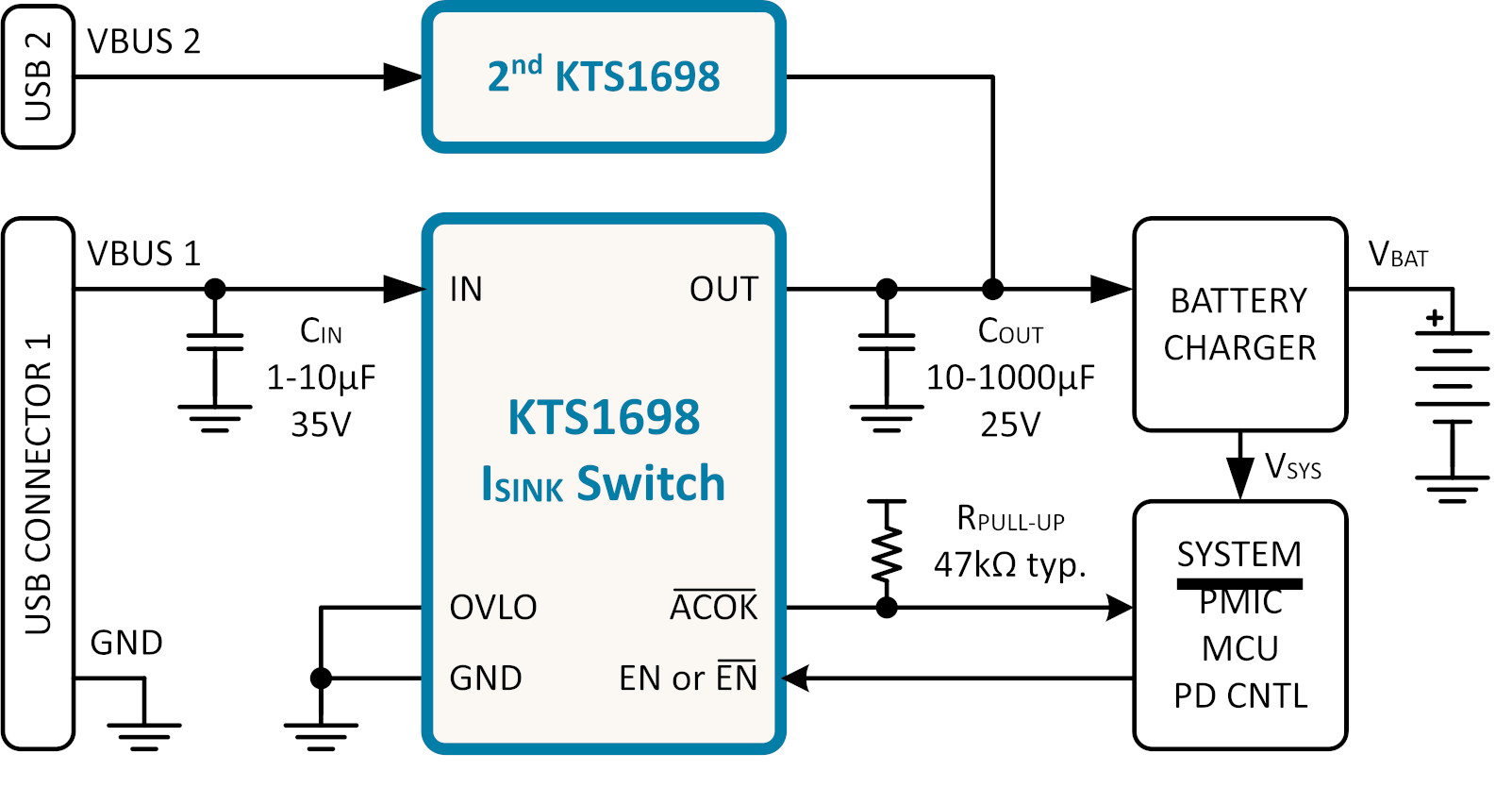

KTS1698 is a low-resistance, high-current load switch with soft-start, over-voltage protection, reverse-current blocking, over-current protection, short-circuit protection, over-temperature protection, and integrated TVS. It is optimized to protect systems with USB Type-C PD ports and barrel connectors that sink up to 100W at 20V and must withstand up to 29V on VBUS.

Automatic reverse-current blocking acts as an “ideal diode” and isolates VBUS when charging or powering the system via another port. Soft-start limits inrush current when turning on with large capacitors at the output. The integrated TVS provides IEC industry standard ESD and ±90V surge ratings. An ACOK flag indicates when power is good.

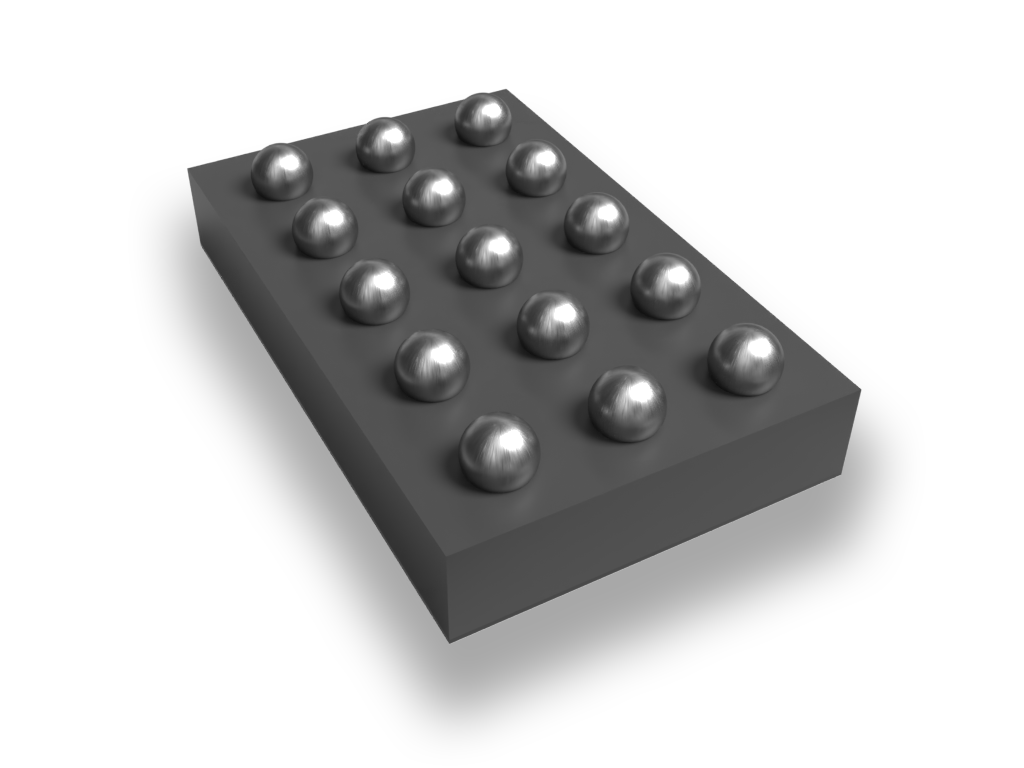

KTS1698 is packaged in advanced, fully “green” compliant, 2.62 x 1.64mm, 15-bump Wafer-Level Chip-Scale Package (WLCSP).


  • 3V to 23V Operating Voltage Range
  • 29V Abs. Max. Rating at IN and OUT
  • 5A Continuous Current Rating
    • 10A Pulse Current Rating (duration Pd limited)
  • 25mΩ typ. On-Resistance from IN to OUT
  • Soft-Start (SS) Limits Inrush Current
  • Over-Voltage Protection (OVP) at IN
    • 23V Internally Fixed
    • 4V to 23V External Resistor Programmable
  • “Ideal Diode” Reverse Current Protection (RCP)
    • 20mV Forward Voltage and 15µs Fast Recovery
  • Over-Current Protection (OCP) at OUT
  • Short-Circuit Protection (SCP) at OUT
  • Over-Temperature Protection (OTP)
  • Transient Voltage Suppression (TVS) at IN
    • ±90V Surge Protection (IEC61000-4-5)
    • ±8kV ESD Contact Discharge (IEC61000-4-2)
    • ±15kV ESD Air Gap Discharge (IEC61000-4-2)
  • EN or EN Enable Logic Input Versions
  • ACOK Open-Drain Power Good Flag
  • -40°C to 85°C Operating Temperature Range
  • 15-bump WLCSP 2.62 x 1.64mm (0.5mm pitch)


  • Computers and Tablets
  • Mobile Internet Devices
  • Type-C Power Source Switch
  • Storage, DSLR and Portable Devices

Packaging Information

Package Dimensions Bumps Package Code
WLCSP35-15 2.62mm x 1.64mm 15 DAB


Vin (min)  Vin (max)  ON Resistance (mΩ) Max Current (A) OVP Trip Point (V) OVP Turn Off Response Time (ns) IEC 61000-4-2 ESD (Air Discharge) IEC 61000-4-2 ESD (Contact Discharge)
3V 23V 25 5 Fixed: 23V
Adj: 4 – 23
±90 ±15kV ±8kV
