Ultra-Fast 100V Surge Protected OVP Switch, with VDET Output and MIC Function

Features

  • Wide Input voltage range: 2.3V to 28V
  • Up to 4A Continuous current capability
  • Integrated 38mΩ (typ) N-Channel MOSFET
  • Wide Overvoltage threshold range
    • Fixed internal: 5.95V
    • Adjustable: 4V to 22V
  • Fast OVP response time: 0.1µs (typ.)
  • Microphone Mode for audio signal on IN
  • Internal 15ms Startup Debounce
  • Integrated Surge Protection up to 100V
  • Low Quiescent Current: 70µA (typ.)
  • Thermal Shutdown and Short Circuit Protection
  • Compliance to IEC61000-4-2 (Level 4)
    • Contact: ±8kV
    • Air Gap: ±15kV
  • ESD Protection
    • Human Body Model: ±2kV

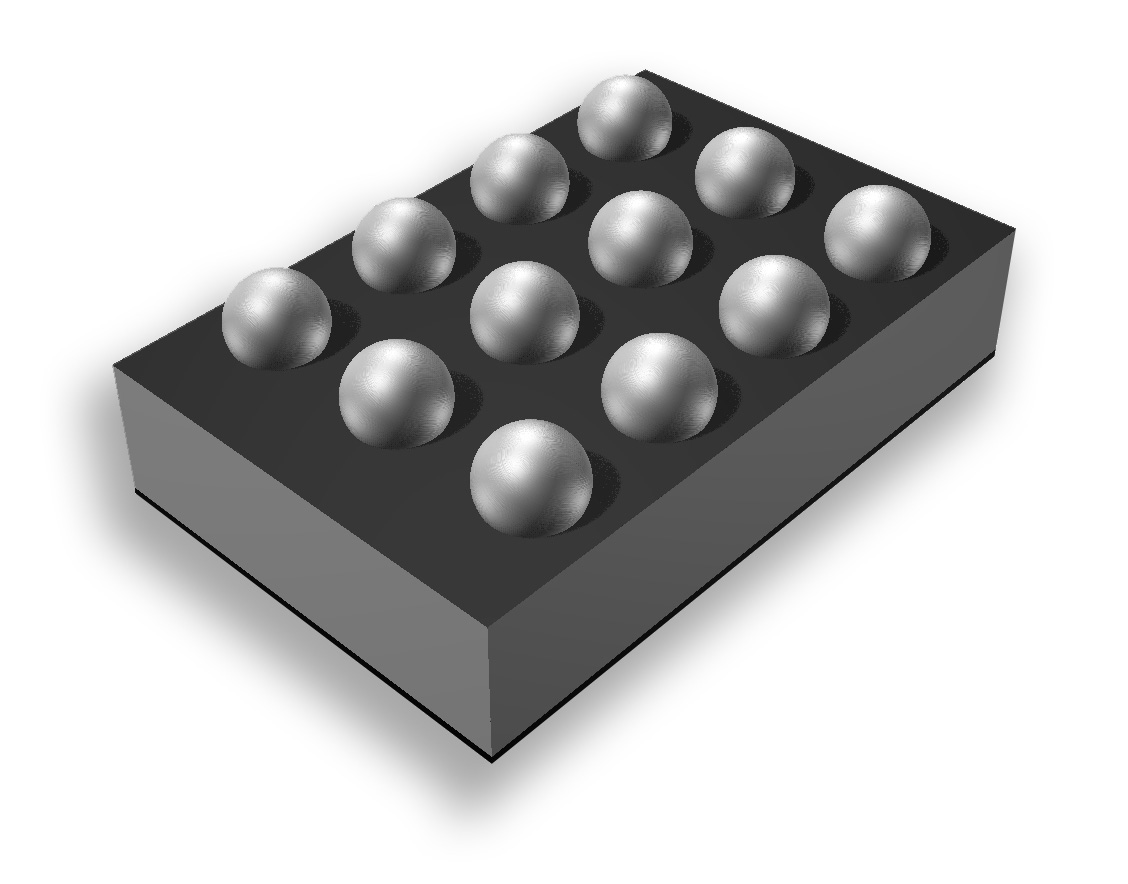

  • Pb-free Package: 12-Bump WLCSP
  • -40°C to +85°C Temperature Range

Applications

  • Smartphones
  • Tablet
  • Mobile Internet Devices, Peripherals

Key Electrical Specifications

Vin(Min) Vin(Max) ON Resistance Max Current Package
2.3V 28V 38mΩ 4.5A WLCSP-12 1.3 x 1.96mm

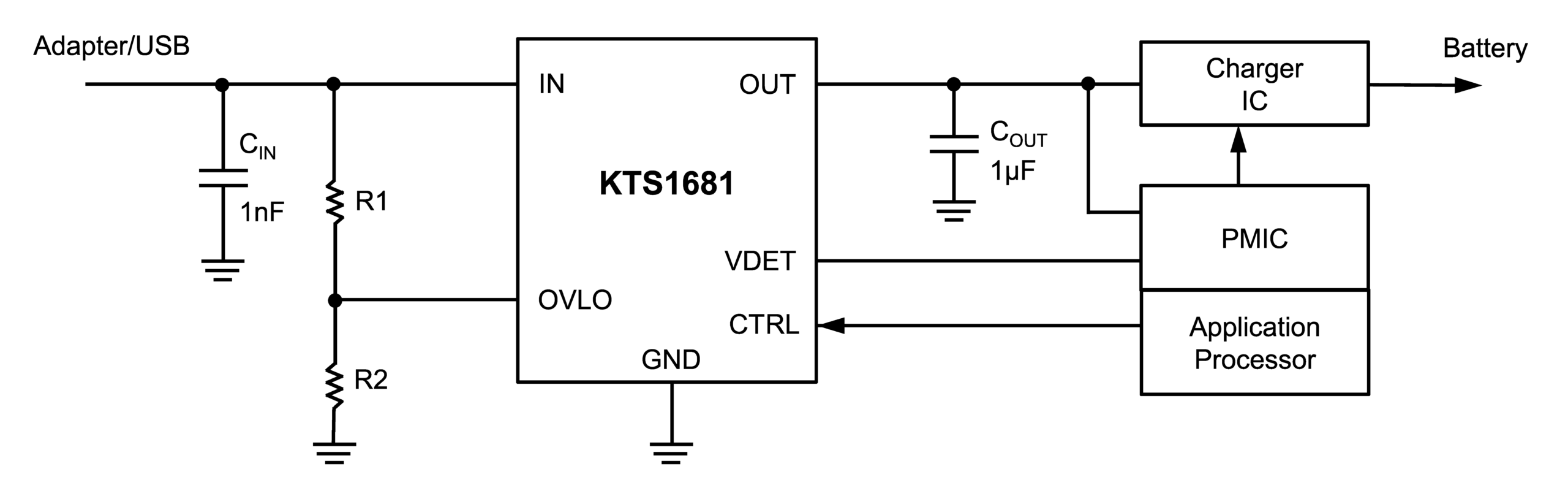

Typical Application Diagram
