High Efficiency 2-Channel LED Backlight with Flash Function
Description

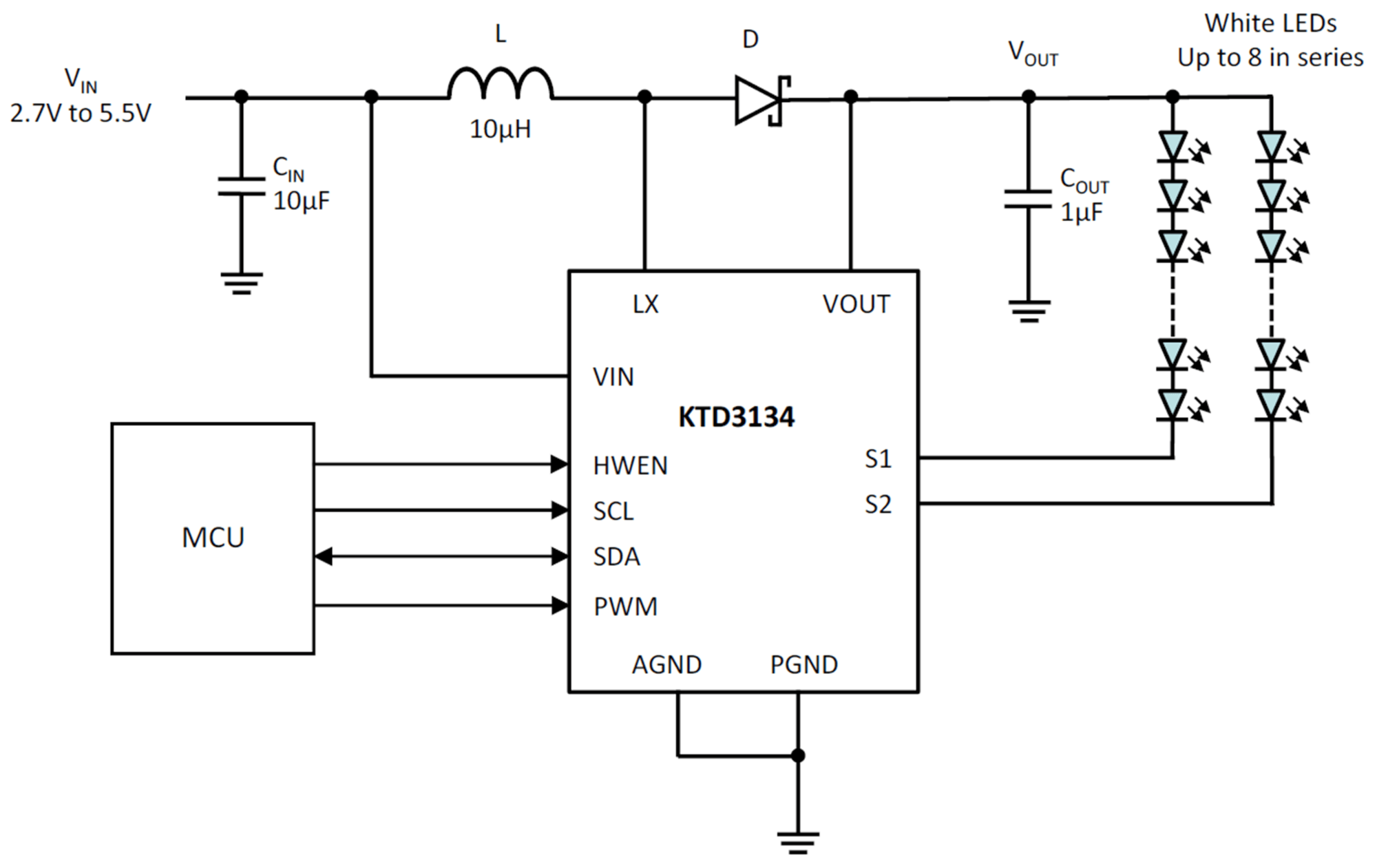

KTD3134 is the ideal power solution for LED backlighting and selfie flash in medium to large size LCD panels. It is a highly integrated step-up DC-DC converter operating with an input voltage from 2.7V to 5.5V, accommodating 1-cell lithium-ion batteries or 5V supply. It includes a high voltage power NMOS, as well as two current sinks, resulting in a simpler and smaller solution with fewer external components. High switching frequency allows the use of a smaller inductor and capacitor.
Each of the two regulated current sinks can regulate up to 29.8mA in backlight mode. With a maximum of 32V at the output of the step-up converter, each string can connect up to 8-LED in series for a 16-LED application.
KTD3134 is equipped with I2C interface for various controls. For additional flexibility, PWM dimming with wide range frequency and duty cycle is included to support Content Adaptive Brightness Control (CABC).
KTD3134 also adds selfie flash function to the existing backlight solution by boosting the sink current up to 59.6mA/Ch and integrating a flash timeout of up to 1.5sec.
Various protection features are built into KTD3134, including cycle-by-cycle inductor current limit protection, output overvoltage protection, LED fault (open or short) protection and thermal shutdown protection.
KTD3134 is available in a RoHS compliant 12-ball 1.19mm x 1.64mm WLCSP or a 16-lead 3mm x 3mm x 0.75mm Thin-QFN package.
Features
- Wide input range: 2.7V~5.5V
- High efficiency step-up 2-Channel LED driver
- 2-Ch current sinks, up to 8-LEDs per string
- Up to 29.8mA/Ch in backlight mode and up to 59.6mA/Ch in flash
- +/-0.6% current matching at 20.2mA
- +/-1.5% current accuracy at 20.2mA
- I2C/PWM dual dimming control scheme
- 11-bit I2C exponential or linear mapping with programmable transition ramp time
- Wide range PWM dimming with programable transition ramp time
-
- 100Hz to 100kHz frequency
- 0.2% to 100% duty cycle at 20kHz
- Programmable current sink turn on/off ramp time and shape
- Selectable boost converter switching frequency 1MHz or 500kHz with 20% shift up option
- Programmable input PWM hysteresis to minimize jitter at low PWM duty cycle
- Programmable OVP (25.9V/32V) and current limit (1.8A/2.6A)
- LED open/short protection
- Status reporting through I2C interface
Applications
Smartphone/Tablet Backlight
Packaging Information
| Package | Dimensions | Package Code |
| WLCSP-12 | 1.19mm x 1.64mm x 0.62mm | US |
| TQFN33-16 | 3.00mm x 3.00mm x 0.75mm | FJ |
Technical Documentation
| Description | Documents | Type |
|---|---|---|
| Datasheet | KTD3134-04a |
