3.0MHz High Efficiency Low IQ Synchronous Boost
Description
The KTC2110 features a high-efficiency, micropower synchronous boost for Lithium-Ion/Polymer battery applications. It offers true output disconnect to achieve a shutdown quiescent current of less than 1.0µA, extending battery life.
High efficiency over a wide output current range is achieved by selecting PWM/PFM mode automatically depending on the output load conditions.
A Pass Through mode allows to transfer the input power directly to output (not boosting) with over current protection.
The constant on-time design does not require any external compensation components, simplifying the design and providing ultra-fast transient response.
The inrush current-limiting feature minimizes the voltage droop on the battery supply when the device is turned on.

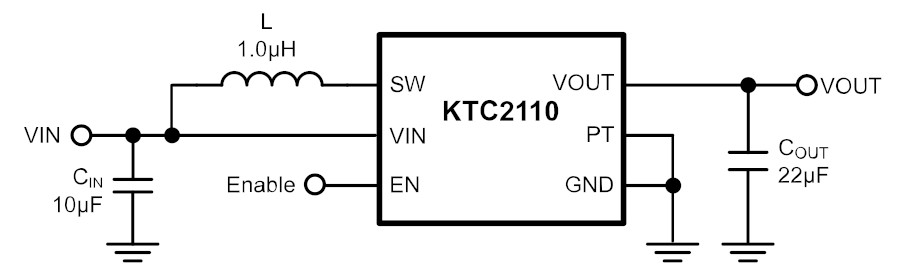

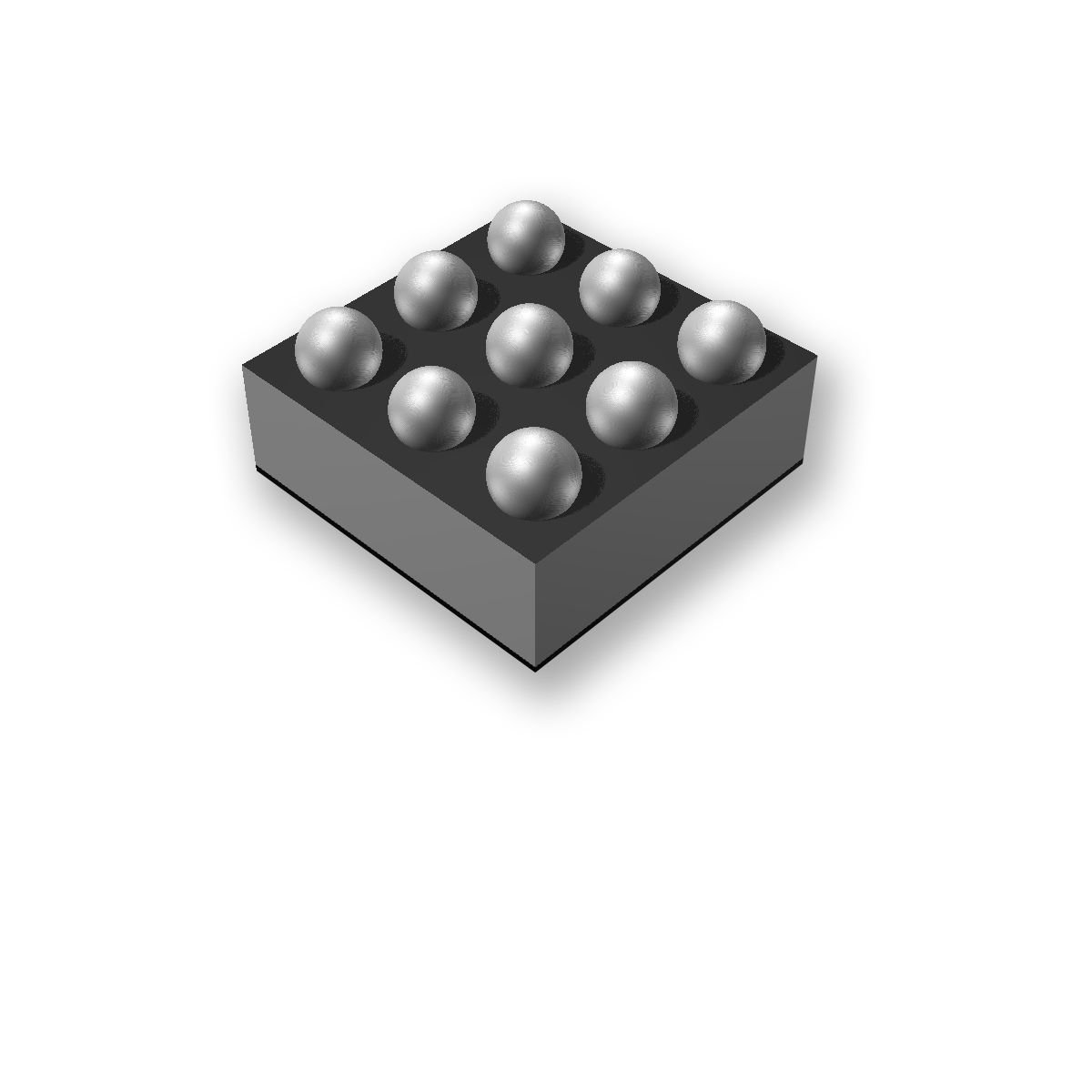

The KTC2110 is packaged in advanced, RoHS and Green compliant, 1.38mm x 1.38mm, 9-balls Wafer-Level ChipScale Package (WLCSP).
Features
- Wide Input Voltage Range: 2.5V – 5.5V
- Output Voltage Options: 3.0V – 5.7V with default 5.0V*.
- Up to 1.0A Output Current
- 3MHz PWM Switching Frequency
- High Efficiency and Low Quiescent Current
- Over 94% Efficiency
- 1µA Shutdown Current
- 35µA Quiescent Current in Pass Through
- 60µA Quiescent Current in PFM Operation
- ±2% DC Voltage Accuracy in PWM mode
- Undervoltage Lockout (UVLO)
- Short Circuit Protection
- Hiccup Current Limit
- Over Temperature Protection
- Selectable Pass Through Mode or True Load Disconnect During Shutdown
- Output Capacitor Pre-Charge and Soft-Start
- Pb-free 9-Bump, WLCSP 1.38mm x 1.38mm
- RoHS and Green Compliant
- -40°C to 85°C Operating Temperature Range
Applications
- Smartphones and Tablets
- Mobile Internet Devices
- USB OTG
- Wearables
- Portable Devices
Packaging Information
| Package | Dimensions | Bumps | Package Code |
| WLCSP33-9 | 1.38mm x 1.38mm x 0.62mm | 9 | CAA |
Parameters
| Vin (min) | Vin (max) | Vout | Iout | IQ | Control | FSW |
| 2.5V | 5.25V | 3.0V – 5.7V: default 5.0V | 1.0A | 60µA | EN | 3.0MHz |
Technical Documentation
| Description | Documents | Type |
|---|---|---|
| Datasheet | KTC2110-04b | |
| Package Outline Drawing | WLCSP33-9 CAA POD |
Evaluation Tools
| Documents | Type |
|
|---|---|---|
| User Manual | ||
| Quick Start Guide | ||
| Bill of Materials | XLSX | |
| Schematic | ||
| 3D Board |
Purchase
| Part Number | Marking | Operating Temperature | Package |
| KTC2110ECAA-TR | NOXXYYZZZZ | -40°C to +85°C | WLCSP33-9 |
| KTC2110ECAA-B-TR | SNXXYYZZZZ | -40°C to +85°C | WLCSP33-9 |
