KTB1095 EVAL Kit - Synchronous Flyback Controller with Integrated Feedback & Digital Isolator

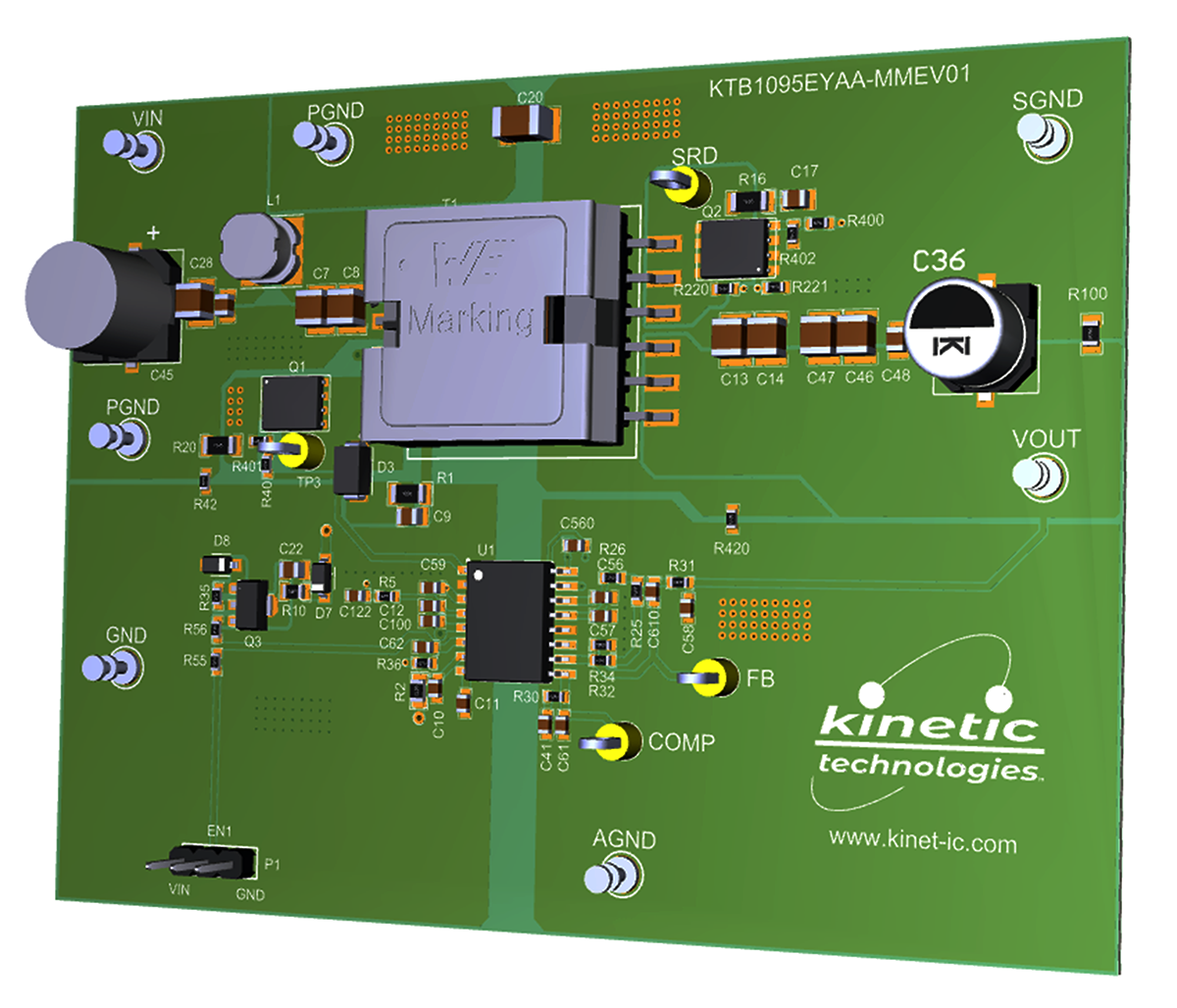

The KTB1095 Evaluation (EVAL) Kit is used to demonstrate and evaluate the KTB1095 functionality, performance, and PCB layout. This evaluation board utilizes 12V, 60W output with flyback topology, having power and signal I/O connections with an array of test points for signal observation.
The KTB1095 is a highly integrated isolated synchronous flyback controller with internal feedback and integrated digital isolator. The internal digital isolator eliminates the need to use an external optocoupler and enables small total solution size.
