5A Slew-Rate Controlled Load Switch with Reverse Blocking

Features

  • Operating Range: 1.5V~5.5V
  • Low RDS(ON) MOSFET: Typ. 13.4mΩ @ 3.3V
  • Continuous DC current up to 5A
  • Built-in slew rate controlled turn-on: 2.7ms
  • Low quiescent current < 1µA
  • ESD Protection
    • Human Body Model : 8kV
    • Charged Device Model : 2.0kV
    • Compliance to IEC61000-4-2 Level 4
      • Contact Discharge : 8kV
      • Air Discharge : 15kV

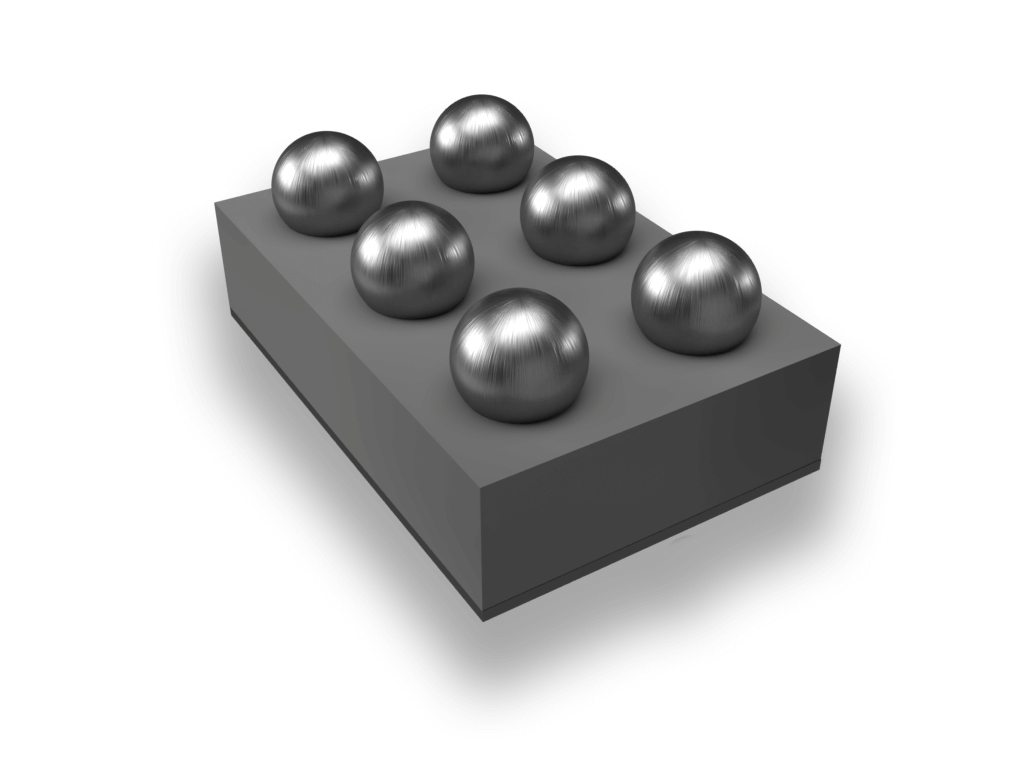

    • WLCSP-6, 1.0 x 1.5mm
    • RoHS and Green Compliant
    • WLCSP-6;1.0 X 1.5mm
    • RoHS and Green Compliant
    • -40°C to +85°C Temperature Range

Applications

  • Mobile Phones & Tablets
  • SSD (Solid State Drive)
  • Portable Instruments
  • DSC, DVR, GPS

Key Electrical Specifications

Vin(Min) Vin(Max) ON Resistance Max Current Package
1.5V 5.5V 10.5mΩ 5A WLCSP-6 1.0 x 1.5mm

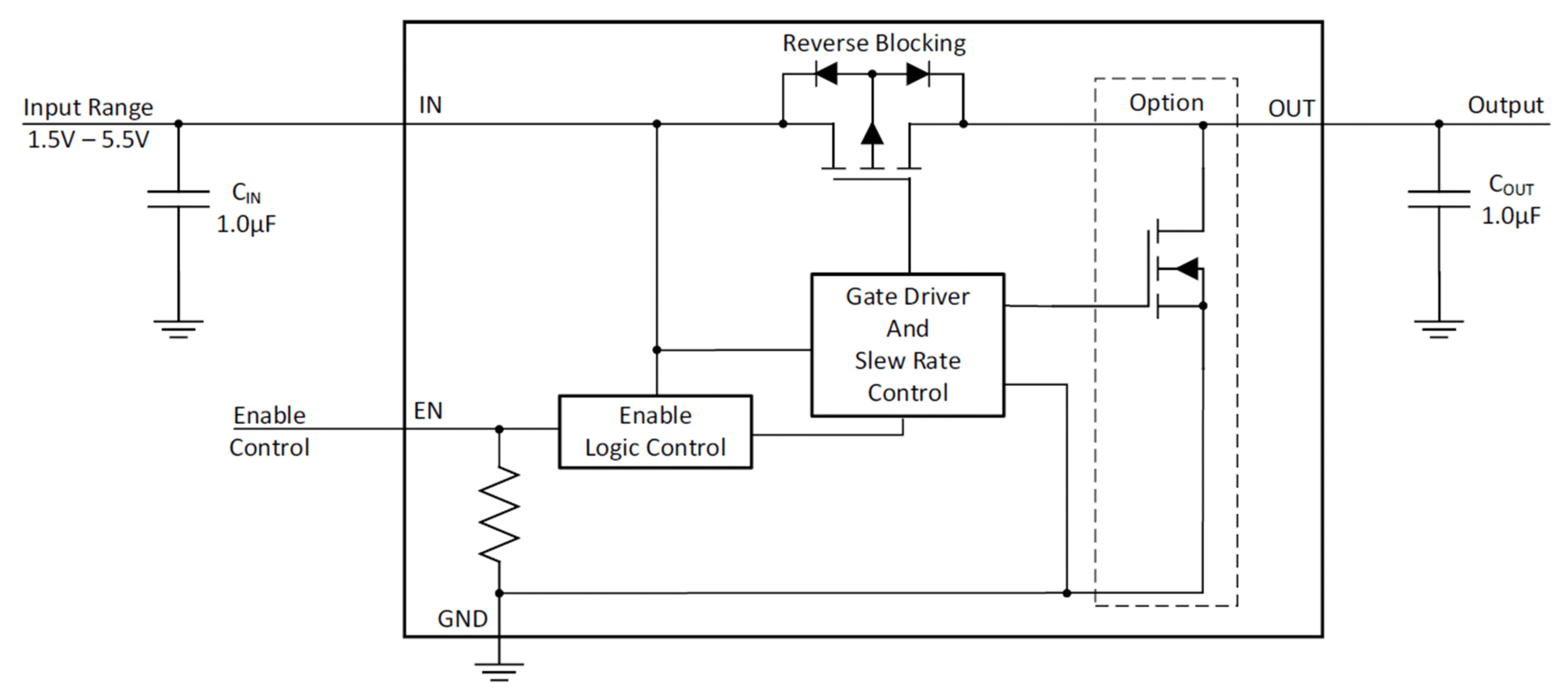

Typical Application Diagram
