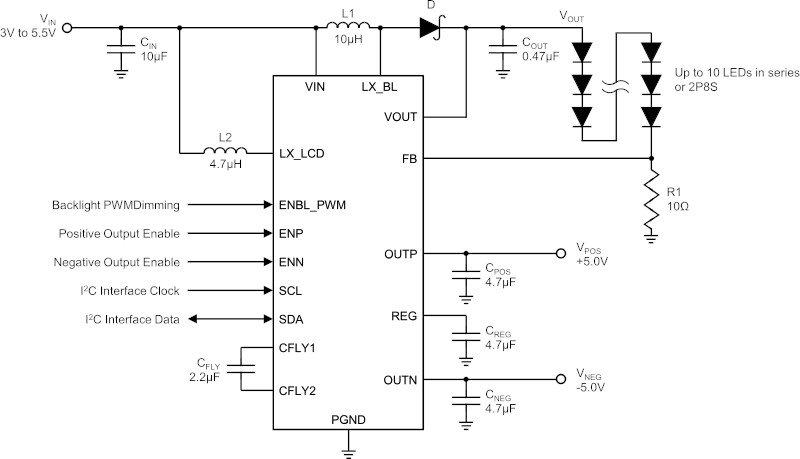

The KTZ8850 is a multifunction power management IC combining a high efficiency step-up LED driver with dual output LCD bias power regulator. It features a versatile constant current LED driver with a high efficiency DC-DC step up “boost” converter architecture. The low-side 40V power MOSFET is integrated in the device, minimizing the total number of external components. Unique technology and high 1.3A current limit allow KTZ8850 to drive up to 36V output (single string of 10 LEDs in series or 2 parallel strings of 8 LEDs in series).

The optimized 1.1MHz switching frequency results in small external component size. The driver is equipped with an internal decoder that allows digital FB control dimming for 256-step (8-bit) current programming and can be used for dimming via I2C interface.

High resolution PWM dimming control is also included for extended dimming range. For power savings, the PWM pin can be used for Content Adaptive Brightness Control (CABC) schemes.

Various protection features are built into the KTZ8850, including cycle-by-cycle input current limit protection, LED open-circuit (output over voltage) protection and thermal shutdown protection. The leakage current in shutdown mode is less than 1µA.

An LDO and a charge pump generate dual outputs at +5V (default) and -5V (default), whose voltages can be programmed via an I2C interface. By integrating synchronous rectification MOSFETs for the step-up converter and charge pump, the KTZ8850 maximizes conversion efficiency up to 90%.

The device integrates compensation and soft-start circuitry, which results in a simpler and smaller solution with much fewer external components. High switching frequency (2.2MHz) allows the use of a smaller inductor and capacitor to further reduce the solution size.

The I2C-compatible interface controls the dual output voltages and accesses the programmable functions and registers on the device.

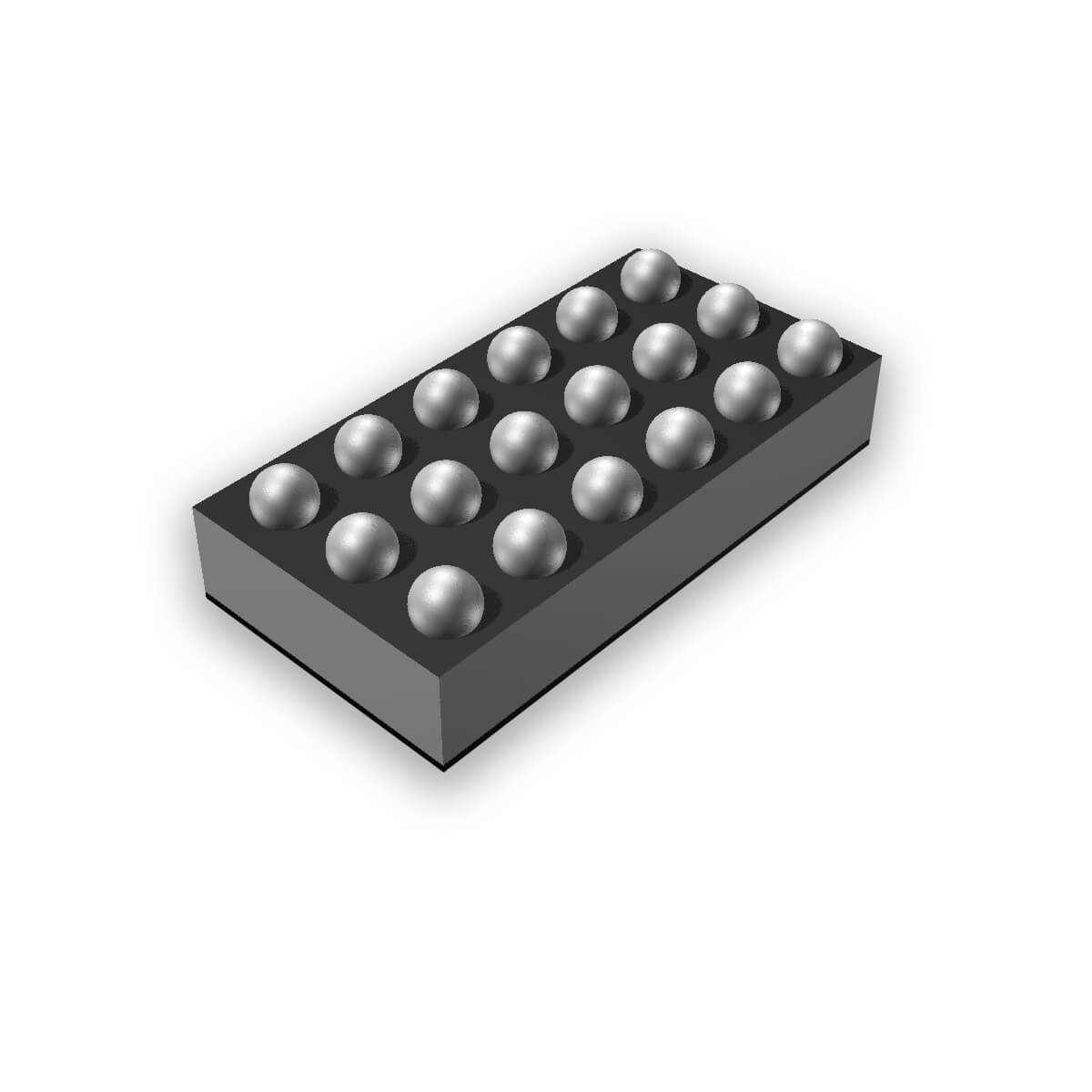

KTZ8850 is available in a RoHS compliant 18-ball 2.47 x 1.27mm WLCSP package.


  • Wide input range: 3.0V~5.5V
  • High efficiency step-up LED driver with dual output regulator for LCD bias power
  • Drive up to 10 series LEDs or 2 parallel strings of 8 series LEDs
  • Backlight efficiency: up to 86%
  • Highly integrated 40V Power MOSFET
  • Flexible dimming control
    • 256-step I2C Controlled or
    • High resolution PWM from 5kHz to 100kHz
  • High accuracy across full load range
  • Programmable LED open-circuit (OVP)/Short protection
  • Low 200mV feedback voltage
  • 1MHz High switching frequency
  • Internal over voltage protection (default 36V)
  • Programmable dual Bias output regulator based on single inductor solution
  • Charge pump PFM mode at light load
  • LCD Bias efficiency up to 90%
  • Wide dual output voltage range: +/-4.0V to +/-6.3V (100mV/step)
  • Typ. 2% output voltage accuracy
  • Maximum peak output current up to 80mA
  • Active output discharge function
  • Low quiescent current
  • Cycle-by-cycle inductor current limit
  • 1 µA shutdown current
  • Pb-free Packages: WLCSP-18
  • -40°C to +85°C Temperature Range


  • Smartphone
  • Tablet Backlight
  • Netbook/Notebook Backlight
  • PDA/GPS Backlight; Portable Media Player

Packaging Information

Package Dimensions Bumps Package Type
WLCSP36-18 2.20mm x 1.45mm x 0.62mm 15 UC


Vin (min)  Vin (max)  Number of LEDs/Channel Channels Control Type
3.0V 5.5V 10, 8 1/2 I2C

Technical Documentation

Description Documents Type
Package Outline DrawingWLCSP36-18 UC 3D PODPDF


Part Number Marking1 Operating Temperature Package
