Quad Channel Active EMI & ESD Suppressor for Ethernet Applications

Download Datasheet

Description

The KTA1552 is a four channel, highly integrated CMOS solution for Common Mode (CM) noise suppression & transient voltage protection in Ethernet applications.

The KTA1552 EMI/ESD Suppressor has been architected and designed to provide system level ESD protection and EMI suppression in Ethernet products, enabling an easier path to system EMC compliance.

The KTA1552 utilizes Kinetic Technologies’ patented Active Choke technology which offers superior Common Mode reduction and immunity compared to passive filtering techniques in Ethernet applications. The adaptive and continuous suppression operates over the entire Ethernet signal bandwidth, and it compensates for many variables that are the source of common mode noise in Ethernet systems. It also improves the differential-to-common mode balance of the system. This enables system designers to meet EMI emissions and EMI immunity requirements from the start of the design.

In addition, the KTA1552 includes highly robust ESD/Surge protection diodes to protect the Ethernet PHY from various transient overvoltage events. These are built using Kinetics’ proprietary design and layout techniques to safely deal with very high current densities in a CMOS process without creating voltage and/or thermal overstress that causes damage to the device.

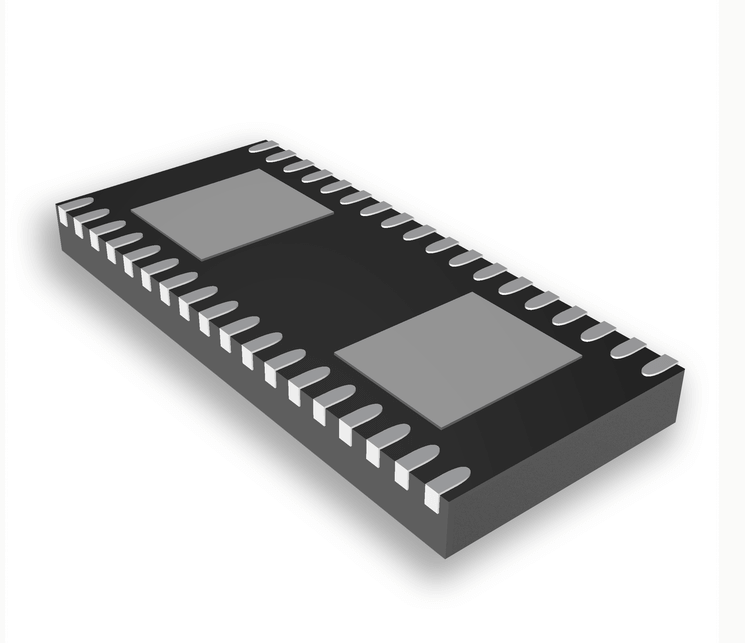

The KTA1552 supports four twisted pair interfaces for 1000 applications. The KTA1552 is available in a small footprint 36-pin DFN 9mm x 4mm Reduction of Hazardous Substance (RoHS) compliant package.

Features

  • Enables system designers to comply with:
    • CISPR22 and FCC Part 15, Class B requirements for Radiated and Conducted Emissions
    • IEC 61000-4-3 requirements for Radiated and Conducted Immunity, Level 3 or higher
    • IEC 61000-4-2 ESD (Air Discharge) of ±25kV
    • IEC 61000-4-2 ESD (Contact Discharge) of ±12kV
    • Cable Discharge Event (CDE) of ±12kV
  • Provides up to 10dB of additional common mode noise suppression over the frequency of 1MHz to 125MHz when used with Ethernet magnetics
  • Robust built-in ESD suppressors protect the Ethernet PHY and improve system ESD performance
  • JESD22-A114, ESD, HBM of ±8kV

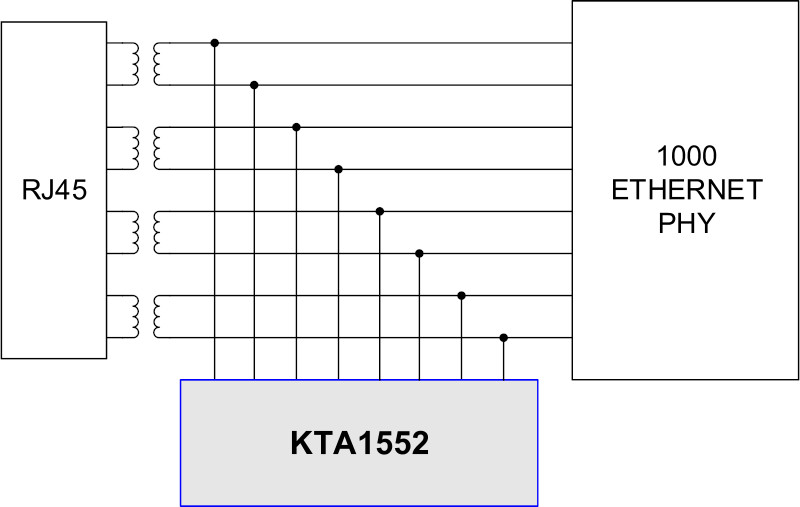

  • Interfaces to standard Ethernet transformers and 1000 Ethernet PHYs
  • Uses a single standard power rail (3.3V or 2.5V)
  • Open drain output stage that can be biased from 1.8V to 3.3V using transformer center-tap supply as needed based on choice of Ethernet PHY
  • Flow-through routing for ease of board layout
  • Typical power consumption of 180mW
  • Low power mode available
  • Industrial temperature range (-40°C to +85°C)

Applications

  • Ethernet systems requiring additional CM suppression to meet EMC Class B emissions or higher EMI immunity requirements and ESD protection
  • POE and Non-PoE Ethernet systems
  • VoIP Phones, IP Cameras, WAPs, Routers, Switches
  • Set Top Boxes, Networked Printers and Appliances, Desktop and Laptop Computers

Packaging Information

Package Dimensions Bumps Package Code
DFN94-36 9.00mm x 4.00mm x 0.90mm 36 DT

Parameters

Vin (min)  Vin (max)  CISPR22 FCC Part 15 IEC 61000-4-3 requirements for Radiated and Conducted Immunity IEC 61000-4-2 ESD (Air Discharge) IEC 61000-4-2 ESD (Air Discharge) Cable Discharge Event (CDE)
2.17V or 3.13V 2.63V or 3.47V Class B, for Radiated and Conducted Emissions Level 3 or higher ±25kV ±12kV ±12kV

Technical Documentation

Description Documents Type
Package Outline DrawingDFN94-36 DT PODPDF
DatasheetKTA1552-04bPDF

Purchase

Part Number Marking Operating Temperature Package
KTA1552EDT-TR LNYWZ -40°C to +85°C DFN94-36
Purchase Options
Buy from Digi-Key
Buy from Mouser
