Description

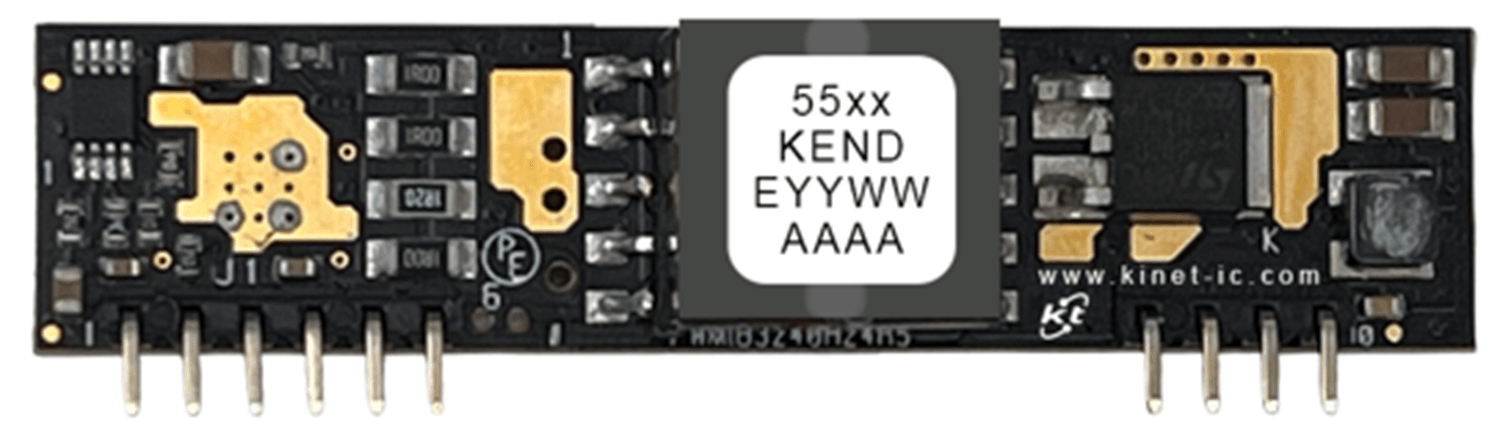

The KPM5500 is one of the world’s smallest full-power IEEE 802.3at and IEEE 802.3af compliant Power over Ethernet (PoE) Powered Device (PD) extraction modules. It delivers up to 30W peak power when powered by a compliant IEEE802.3at Power Sourcing Equipment (PSE) over twisted-pair CAT5e or higher Ethernet cable.

The KPM5500 supports fixed PoE Class 4 and two-event Physical Layer (Layer 1) classification, as per IEEE802.3at and supports Layer 2 classification through the dedicated “AT Detect” pin. It also supports Type 1 and Type 2 PD operation as defined in the IEEE 802.3bt standard.

Output ripple is controlled within IEEE specifications. For improved EMI performance, the KPM5500 features in-built frequency dithering along with a dedicated pin to adjust the switching frequency, enabling additional tuning for targeted EMI filtering. The module also supports an external auxiliary DC power input and provides a remote shutdown function, allowing the PoE supply to remain in standby mode.

The module is designed with the Kinetic Technologies’ KTA1137A (PoE PD and DC-DC controller) and features a high-efficiency, 1500V safety-isolated DC-DC converter with in-built under-voltage, over-voltage, output overload, and short-circuit protection. It requires minimal external components and provides a quick, easy, and cost-effective method for system designers to “PoE enable” their end device.

Features

  • Compact IEEE 802.3at Class 4 PoE PD module
  • 12V and 24V DC output voltage models
  • Adjustable operating frequency1
  • 30W peak and 24W continuous output power2
  • Low output ripple and noise
  • Continuous output short circuit and overload protection3
  • Dedicated pin for Auxiliary Power & Remote Shutdown
  • High efficiency 1500V isolated DC-DC converter
  • Low EMI with in-built frequency dithering
  • “AT Detect” pin for layer 2 classification
  • Adjustable output voltage
  • Minimal external component required (1 x 470µF ECAP on the output side)

Notes:
1. Please refer to FREQUENCY ADJUSTMENT section for details.
2. 30 Watt peak for a maximum of 30 seconds at a 10% duty cycle. Refer to the THERMAL MANAGEMENT section for operating temperature limits.
3. If the maximum power is exceeded, Module will operate in overcurrent mode and will auto recover once the overload condition is removed.

Applications

  • Security and alarm systems
  • Voice over IP phones
  • Access control systems
  • IP Cameras
  • Displays, Net Monitors
  • Routers
  • Public address systems
  • Wireless access points
  • Environmental control
  • Telemetry
  • Remote environmental monitoring
  • Network access points
