Dual-Input Push Button Reset IC

  • Operating Range: 1.6V~5.5V
  • Supply Current in standby: < 1µA (VDD = 4V)
  • Output Delay time (RST0 & 1 Input pins): 10s Typ.
  • Reset Pulse Time (SRO, nSRO Output): 400ms Typ.
  • ESD Protection
    • Human Body Model: 2kV
    • Charged Device Model: 1.5kV
  • Over-Temperature Protection
    • -40°C to +85°C Temperature Range

Applications

  • Smartphones & Tablets
  • Wearable Devices
  • Portable Instruments
  • Remote Controls
  • Gaming
  • DSC, DVR, GPS

Key Electrical Specifications

Vin

(Min)

Vin

(Max)

Quiescent

Current

Reset

Request

Time

Input

Signals

Output

Signals

Package

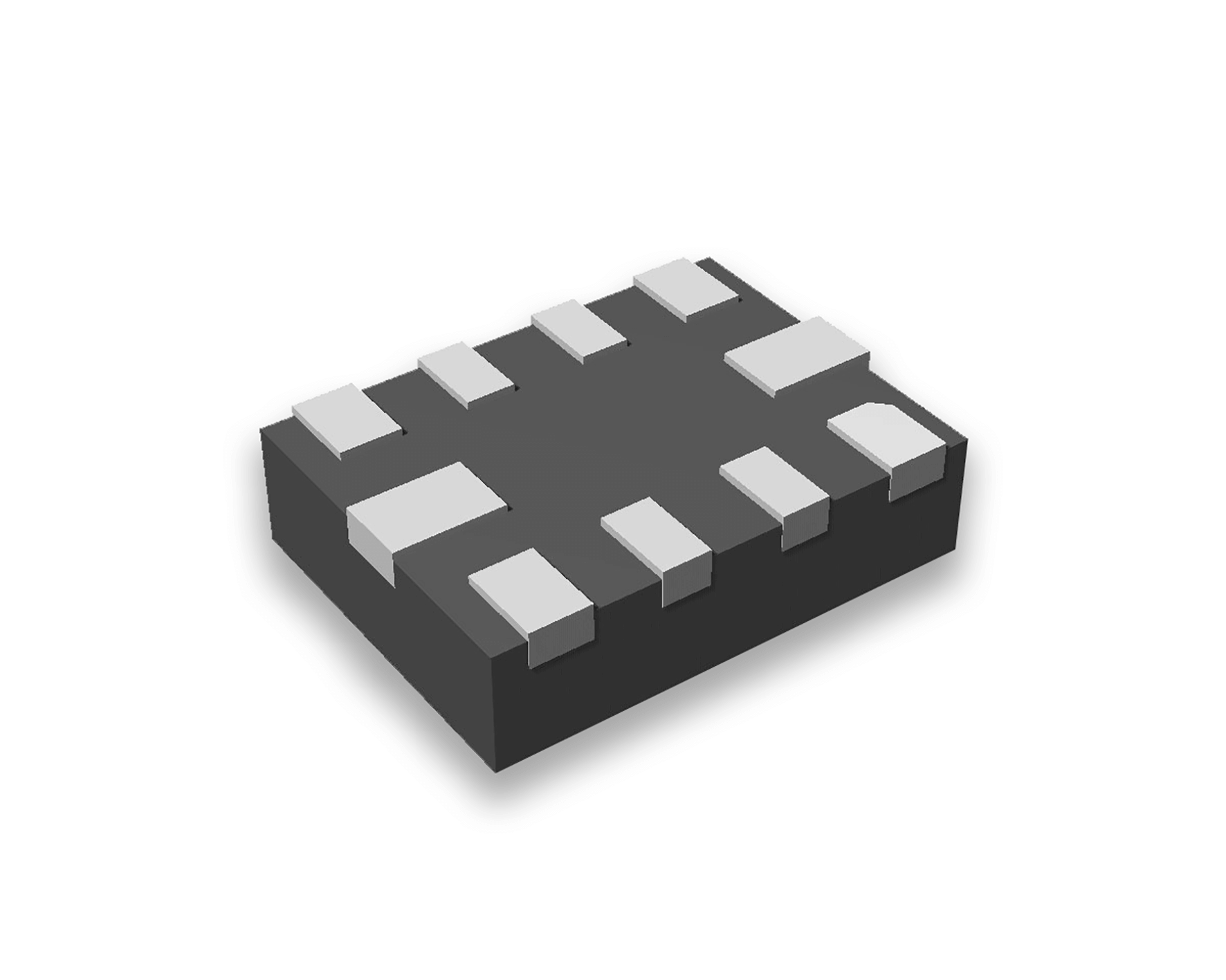

1.6V 5.5V <1µA 10s 2 2 UQFN 2.0 x 1.5-10

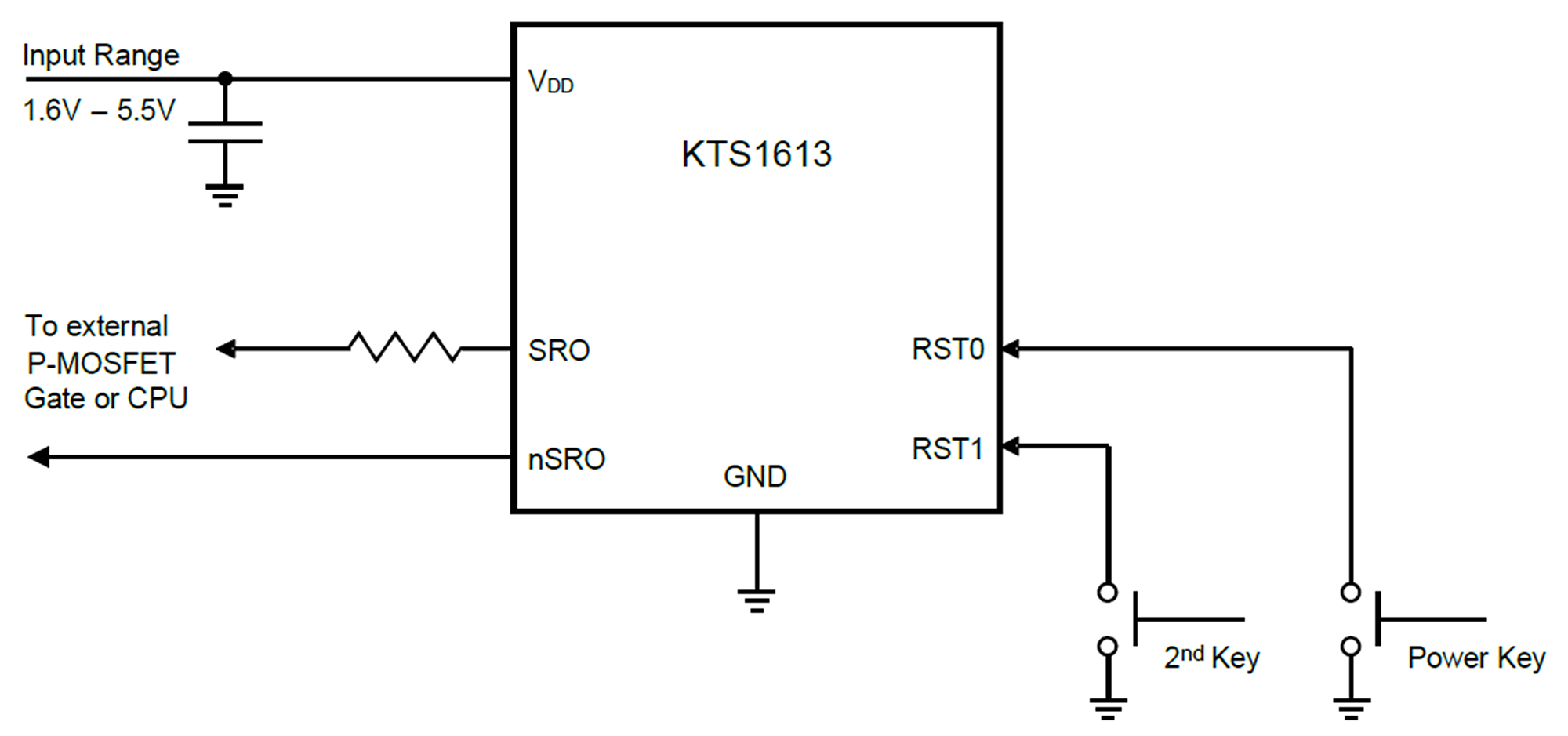

Typical Application Diagram

KTS1613
