Overvoltage Protector with Bidirectional Blocking and Surge Protection

Download Datasheet

Description

The KTS1675 over-voltage protection device features high current integrated N-Channel MOSFETs with an ultra-low IN to OUT on-resistance of 20mΩ (typical). Low-voltage systems on the output are protected from voltage supply faults up to +28V. An internal clamp on the input protects the device from surges up to ±100V.

An input voltage exceeding the over-voltage threshold causes the internal MOSFETs to turn off, preventing excessive voltage from damaging downstream devices.

The KTS1675 has a selectable internal fixed OVLO threshold preset to either 13V or 17V (typical) and also supports reverse bias blocking, preventing any voltage present at OUT pin feeding back into IN when the device is in the Off state. The KTS1675 also provides a selectable, always ON, clamped output voltage of 16V or 20V max.

The KTS1675 also features additional protection including enhanced ESD and thermal to protect against over-load conditions.

The device is available in a RoHS and Green compliant 20-bump, 0.4mm pitch, 2.22mm x 1.82mm WLCSP.

Features

  • Wide Input voltage range: 3.0V to +28V
  • Integrated MOSFET switch 20mΩ typical
  • 5A Continuous Current
  • VP Select pin
    • Over-Voltage threshold trip 13V/17V
    • VSNS clamp 16V/20V max
  • Fast Over-Voltage response time 100ns
  • Low Quiescent Current: 160μA (typ.)
  • Integrated Protection
    • Thermal Shutdown
    • Under voltage protection (UVLO)
    • Soft-Start
    • OUT to IN Reverse Blocking
  • EN, VSNS, WRX and FLAG pins
  • Integrated Surge Protection up to +/-100V
  • Pb-free WLCSP 20-Bump, 0.4mm pitch
  • -40°C to +85°C Temperature Range

Applications

  • Smartphones and Tablets
  • Mobile Internet Devices
  • Peripherals

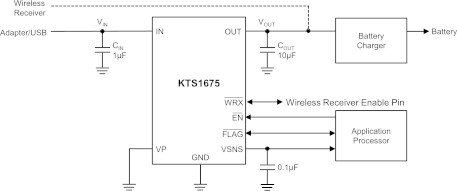

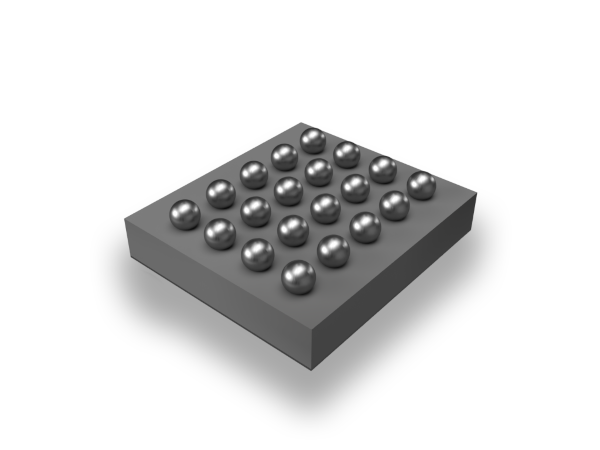

Packaging Information

Package Dimensions Bumps Package Code
WLCSP54-20 2.22mm x 1.82mm x 0.62mm 20 UT

Parameters

Vin (min)  Vin (max)  ON Resistance Max Current (A) OVP Trip Point Package
3.0V 28V 20mΩ 5A 13V/17V WLCSP54-12

Technical Documentation

Description Documents Type
DatasheetKTS1675-04ePDF
Package Outline DrawingWLCSP54-20 UT PODPDF

Purchase

Part Number Marking Operating Temperature Package
KTS1675EUT-TR MOXXYYZZZZ -40°C to +85°C WLCSP-20
